Barry Reach Pendants and Sling Legs are offered in a range of lengths, configurations, and safe working load ratings, supporting military, utility, and emergency response operations. Application‑specific and custom configurations are available upon request.
Key Features
- High-strength synthetic rope construction
- Torque-balanced design for stable lifting
- Available in multiple safe working load ratings
- Custom lengths and configurations available
- Compatible sling legs and rigging assemblies
- Engineered for demanding helicopter external load operations
Applications
- Military logistics and underslung load operations
- Utility and powerline construction
- Aerial construction and infrastructure projects
- Disaster response and emergency operations
- Firefighting and forestry support
Available Products
(Customized and adapted products can be made on request)
| Part # |
NSN |
Length |
Weight |
WLL (lbs) |
Description |
| Helicopter Reach Pendants |
| BOS-14-K7 |
4020-01-337-3185 |
4'-10" |
15.8 lbs |
25,000 |
Reach Pendant with 11" top eye and 17.312" bottom eye.
Compatible aircraft: CH-47 Chinook, CH-53 Super Stallion, UH-60 Black Hawk |
| DSG-5-11K |
4020-01-365-3115 |
4'-10" |
10.5 lbs |
11,000 |
Reach Pendant with 11" top eye and 17" bottom eye.
Compatible aircraft: CH-47 Chinook, UH-60 Black Hawk, UH-1 Huey |
| DSG-13-10K |
TBD |
13'-0" |
29 lbs |
10,000 |
Reach Pendant with swivel hook, Stiffened Tube, non-conductive materials.
Compatible aircraft: CH-148 Cyclone (DND) |
| MK-105 |
1450-00-414-7172 *
1450-01-219-4360 |
12'-0" |
18.2 lbs |
6,000 |
Universal Pendant with option to add 1–6 sling legs.
Compatible aircraft: MH-60 Seahawk, CH-53 Super Stallion |
| Sling Legs (for MK-105 Pendant) |
| Sling Leg /Short |
1450-01-219-1494 |
7'-9-3/4" |
— |
4,000 |
Short sling leg Nylon. Safety swivel hook on one end, 10" eye on the other end. Attaches to MK-105 pendant. |
| Sling Leg /Long |
1450-01-219-4360 |
10'-8-3/4" |
— |
4,000 |
Long sling leg Nylon. Safety swivel hook on one end, 10" eye on the other end. Attaches to MK-105 pendant. |
* NSN ending in 7172 includes pendant + legs. Currently undergoing revision for variance.
Available in multiple lengths, SWL capacities, termination types, and protective reach tube configurations. Contact our team to discuss your aircraft requirements and mission profile.
Note: The appearance of U.S. Department of Defense (DOD) visual information does not imply or constitute DoD endorsement.
Helicopter Reach Pendants and Sling Legs — FAQ & Technical Guide

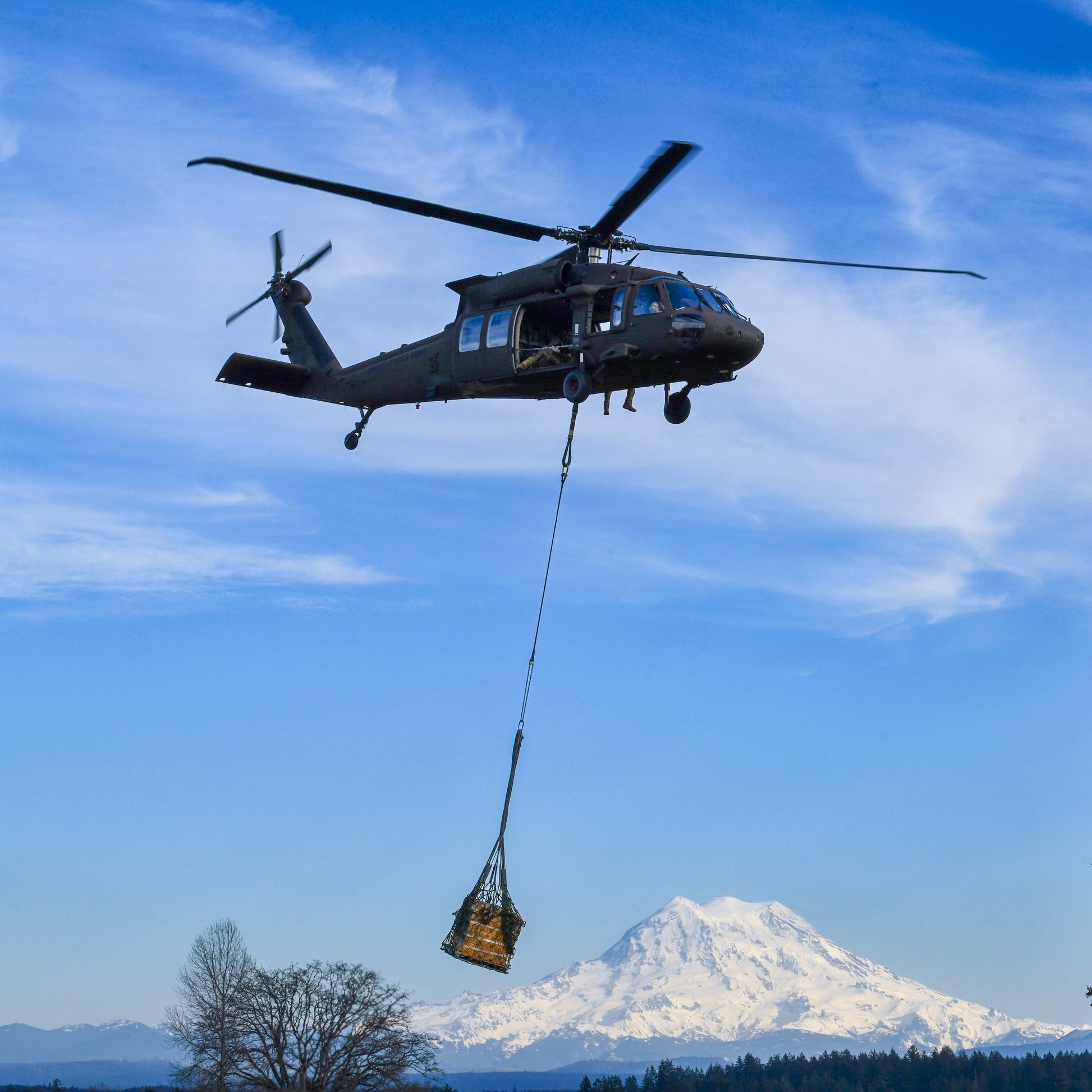

Barry helicopter reach pendants and sling legs are purpose-built assemblies used to safely connect suspended loads to a hovering helicopter during aerial lifting operations. Built from high-strength, torque-balanced synthetic rope, these assemblies extend the effective reach of the helicopter hook — allowing ground crews to safely place the lifting eye while the aircraft maintains a hover above the load.
This page answers the most common technical and operational questions about Barry reach pendants and sling legs, including configuration selection, safe working loads, customization options, and compatibility with different aircraft and mission types.
What is a helicopter reach pendant?

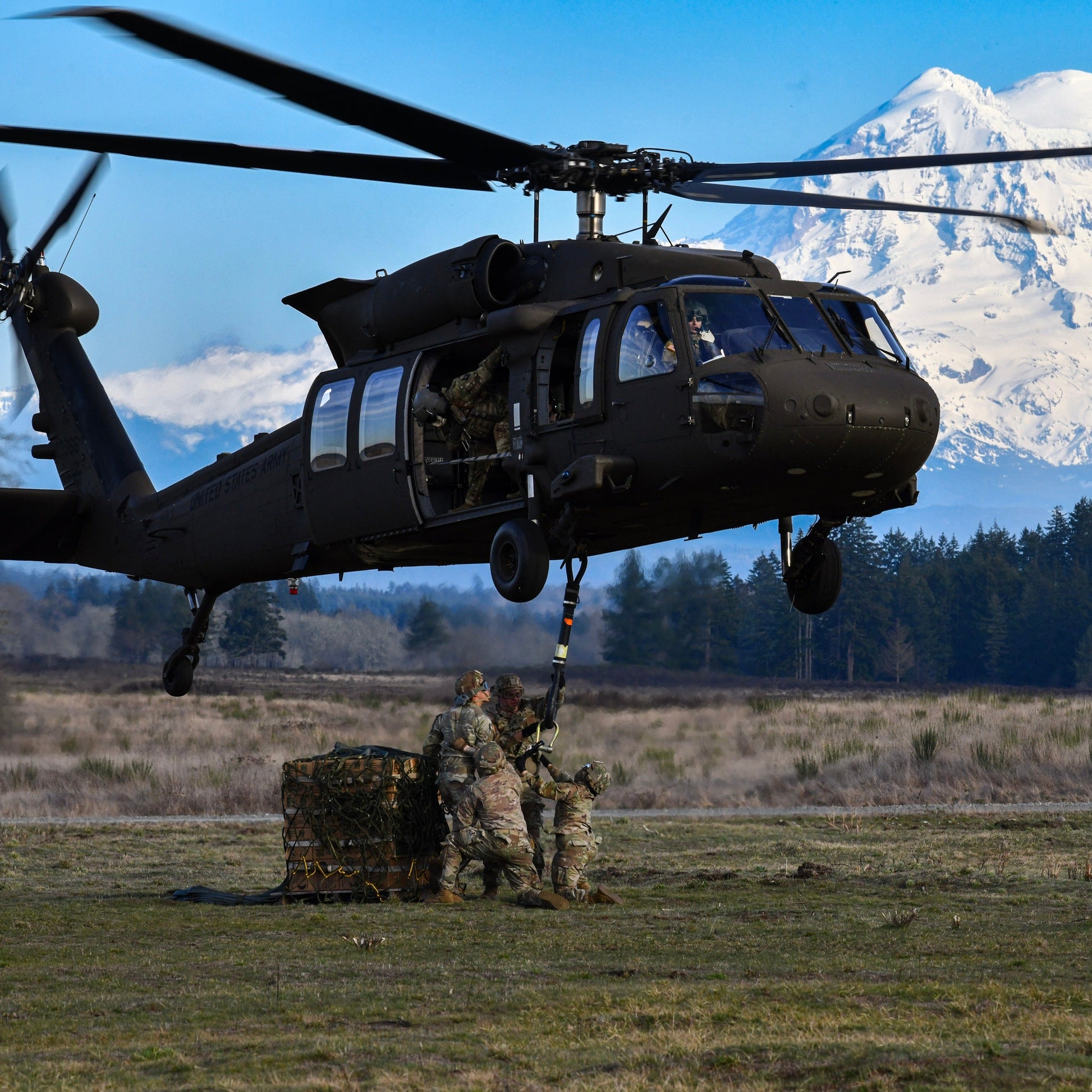

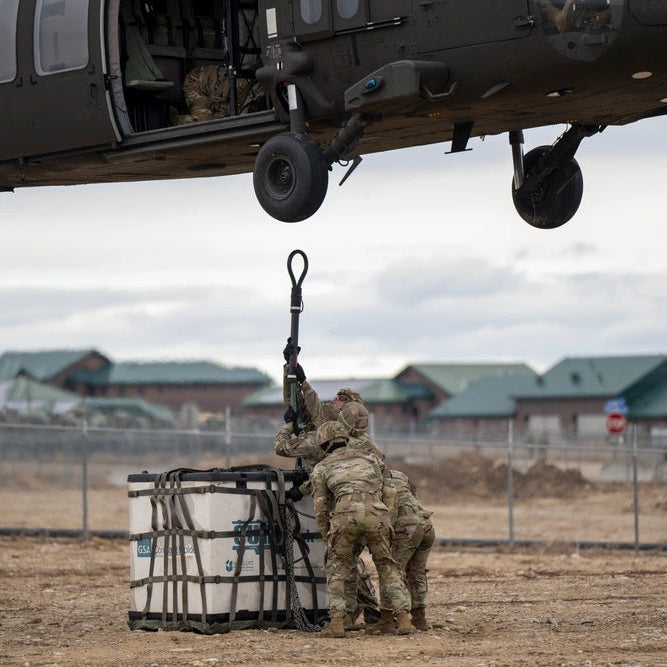

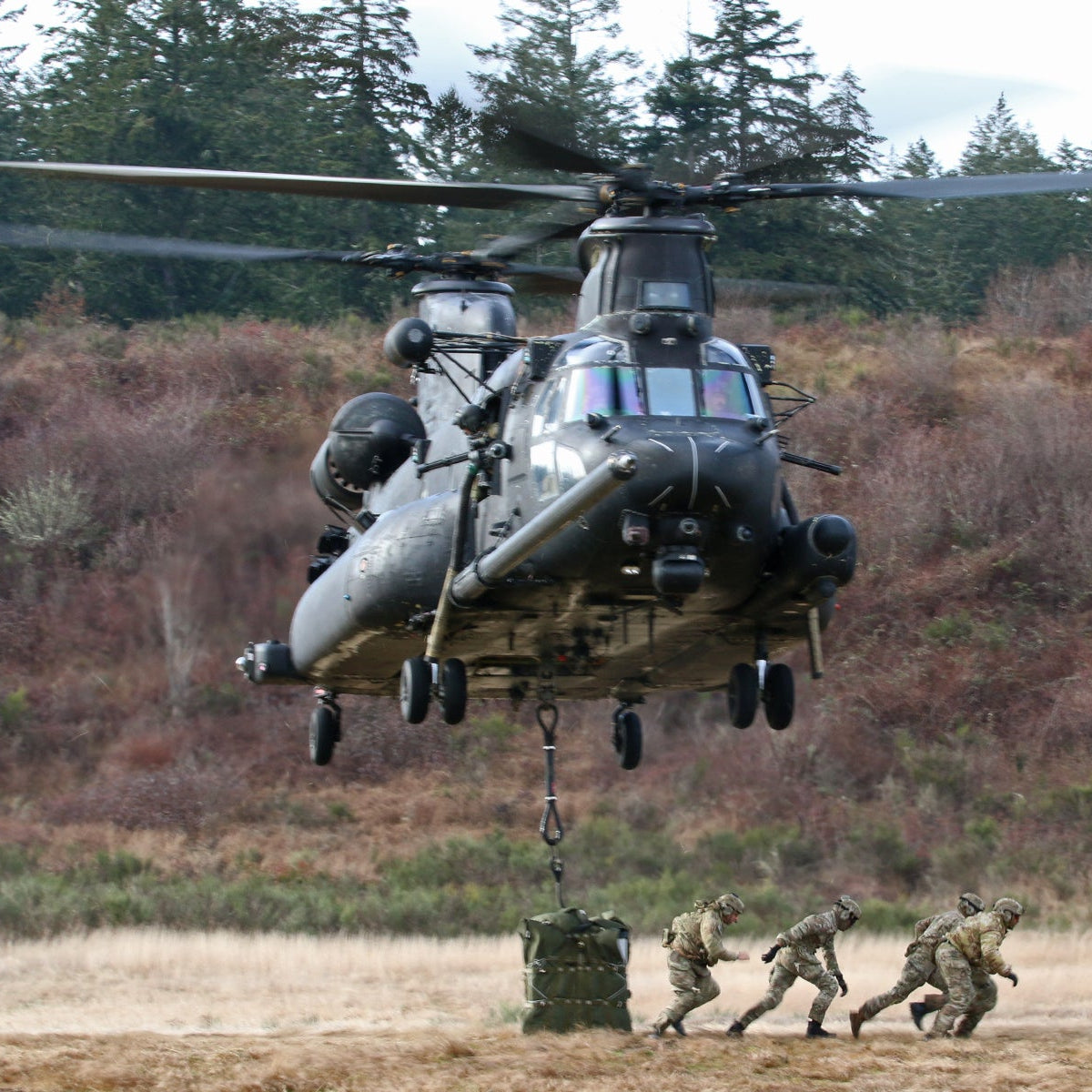

A helicopter reach pendant is a rope assembly that extends downward from the helicopter cargo hook, allowing ground personnel to safely reach and engage the hook with the lifting eye of a suspended load while the helicopter hovers above. The pendant keeps ground crews at a safe distance from the aircraft rotor wash and provides a controlled, stable connection point.
What are sling legs, and how are they used with reach pendants?
Sling legs are individual rope or rigging components that attach to the load and converge at a master link or swivel. When used together with a reach pendant, sling legs form the lower portion of the rigging system — distributing the load across multiple attachment points and providing the geometry needed for stable aerial lift. Barry offers compatible sling legs engineered to work seamlessly with our reach pendant assemblies.
What materials are Barry reach pendants made from?
Barry reach pendants are manufactured from high-strength synthetic rope selected for its combination of strength, flexibility, low weight, and resistance to torque. The torque-balanced construction minimizes load spin during aerial lifts — a critical factor for load stability and crew safety.
What safe working load (SWL) capacities are available?
Barry offers reach pendants in a range of standard safe working load ratings to accommodate different aircraft and load requirements. Custom SWL configurations are also available. Contact our team to discuss your specific lifting requirements and we will recommend the appropriate assembly.
Can reach pendants be customized for a specific helicopter or mission?
Yes. Barry reach pendants and sling legs are fully customizable. Options include overall length, reach tube length, termination type and size, protective sleeve configuration, and SWL capacity. Whether you are operating with a military heavy-lift helicopter, a utility aircraft, or an emergency response platform, Barry can engineer the assembly to match your aircraft hook interface and mission profile.
What types of operations are Barry reach pendants used for?
Barry reach pendants are used across a wide range of helicopter external load applications, including:
- Military logistics and underslung load operations
- Utility and powerline construction and maintenance
- Aerial construction and infrastructure projects
- Disaster response and emergency relief operations
- Firefighting and wildland fire support
- Search and rescue (SAR) and special operations support
Are Barry reach pendants compatible with NATO-standard cargo hooks?
Barry reach pendants can be configured to interface with a wide range of cargo hooks, including those meeting NATO standards. Termination size and geometry can be specified at time of order to ensure compatibility with your aircraft hook. Contact us to confirm compatibility with your specific aircraft model.
What is a reach tube and why is it important?

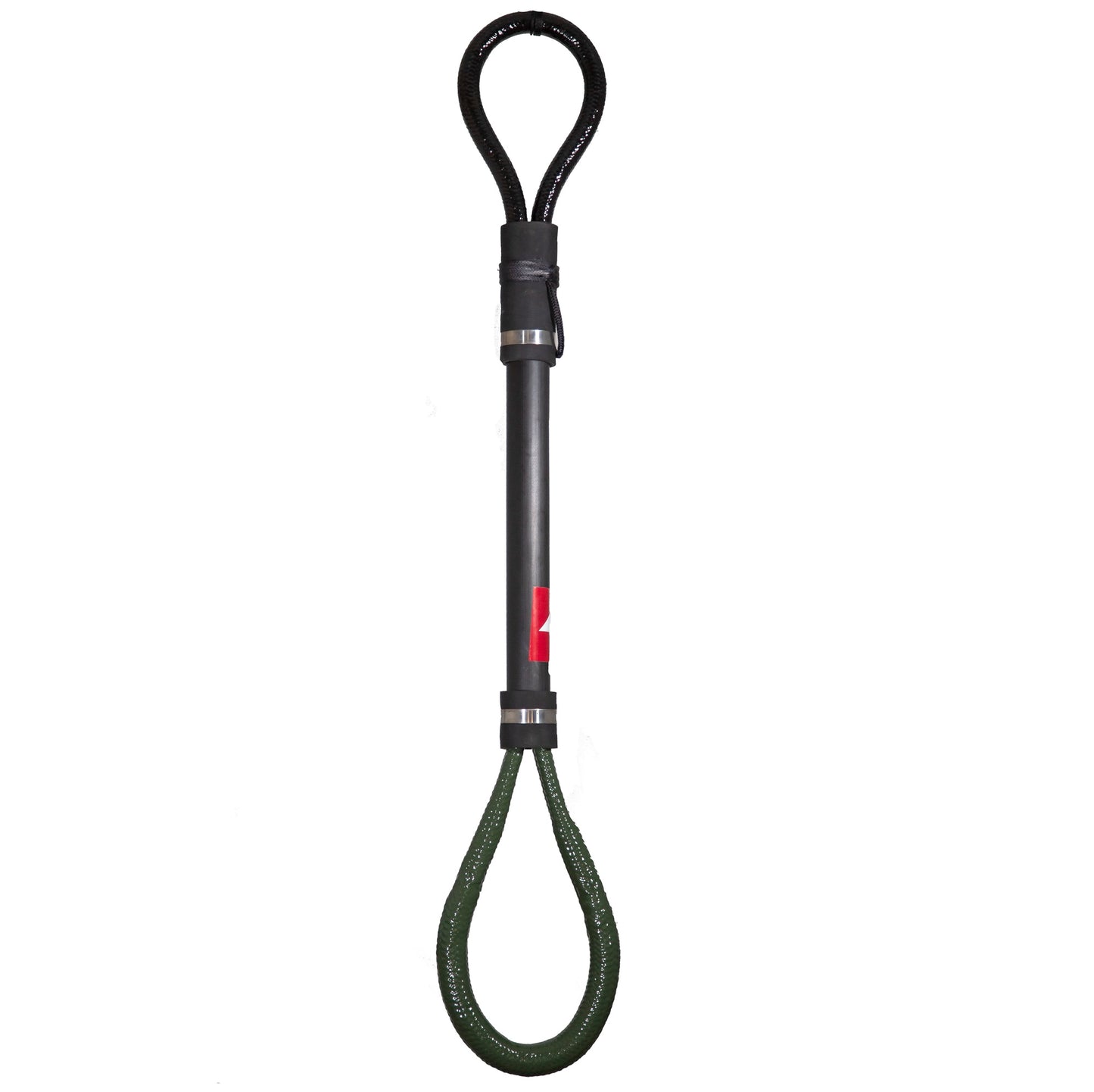

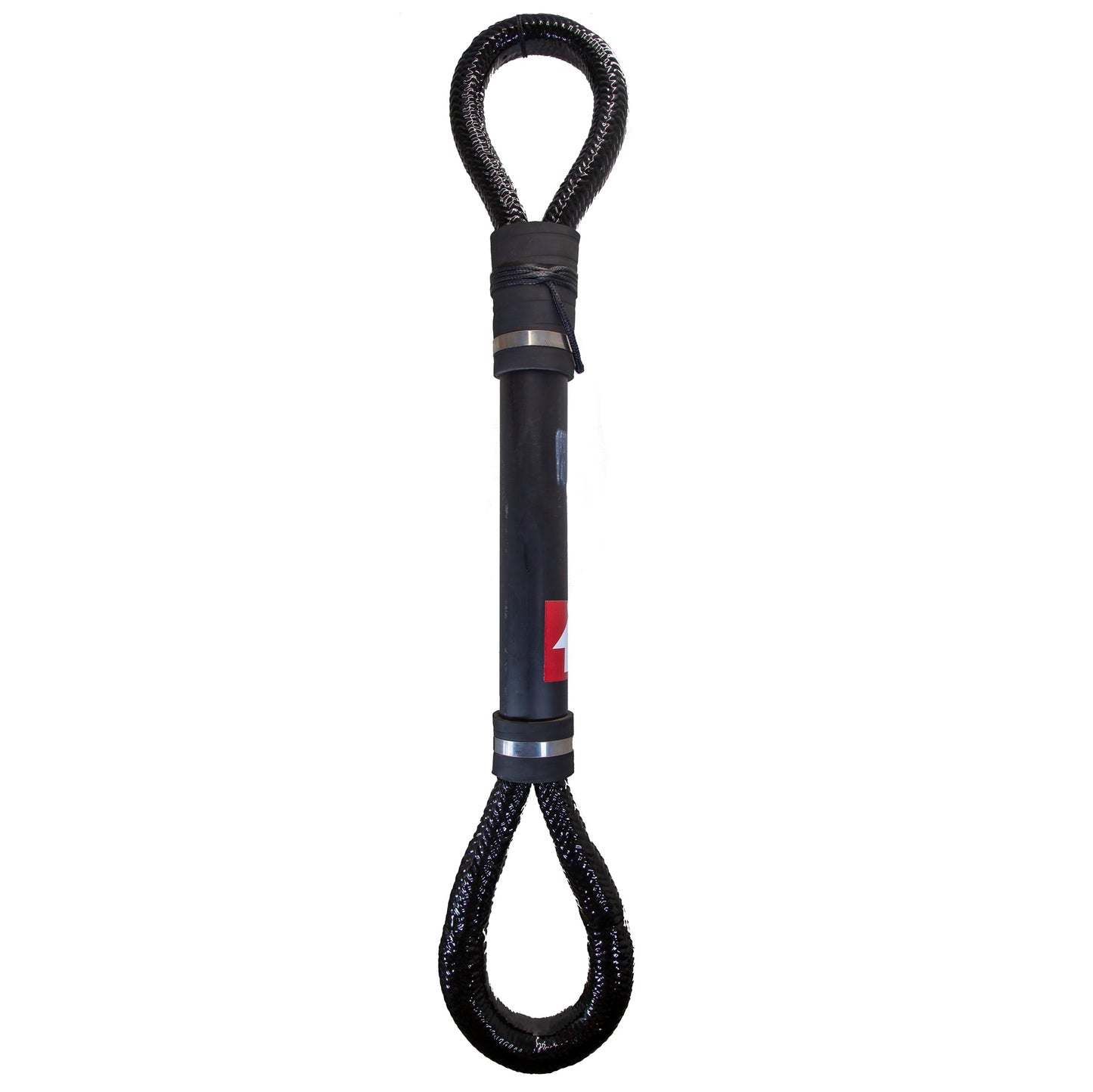

A reach tube is a rigid or semi-rigid protective sleeve positioned along the upper portion of the pendant assembly. It stiffens the top section of the rope, making it easier for ground crews to control and direct the lifting eye up toward the helicopter hook during the hook-up sequence. The reach tube is a key safety feature that reduces the risk of the pendant fouling or collapsing during engagement.
How do I select the right reach pendant length?
Reach pendant length is determined by the specific helicopter type, the required clearance between the load and the aircraft, and the operational environment. Barry's technical team can help you calculate the correct assembly length based on your aircraft specifications and mission requirements. Custom lengths are available beyond standard offerings.
How do I request a quote for a reach pendant or sling leg assembly?
You can submit a quote request directly from the product page. Our specialists will follow up to discuss your aircraft type, mission profile, required SWL, preferred length, and any special configuration requirements. Barry has experience supporting military procurement processes and can provide documentation as required.
