Lightweight Multi-Use Ladder (Webbing and Aluminum)
Lightweight Multi-Use Ladder (Webbing and Aluminum)
Product Code: ECH-S-10

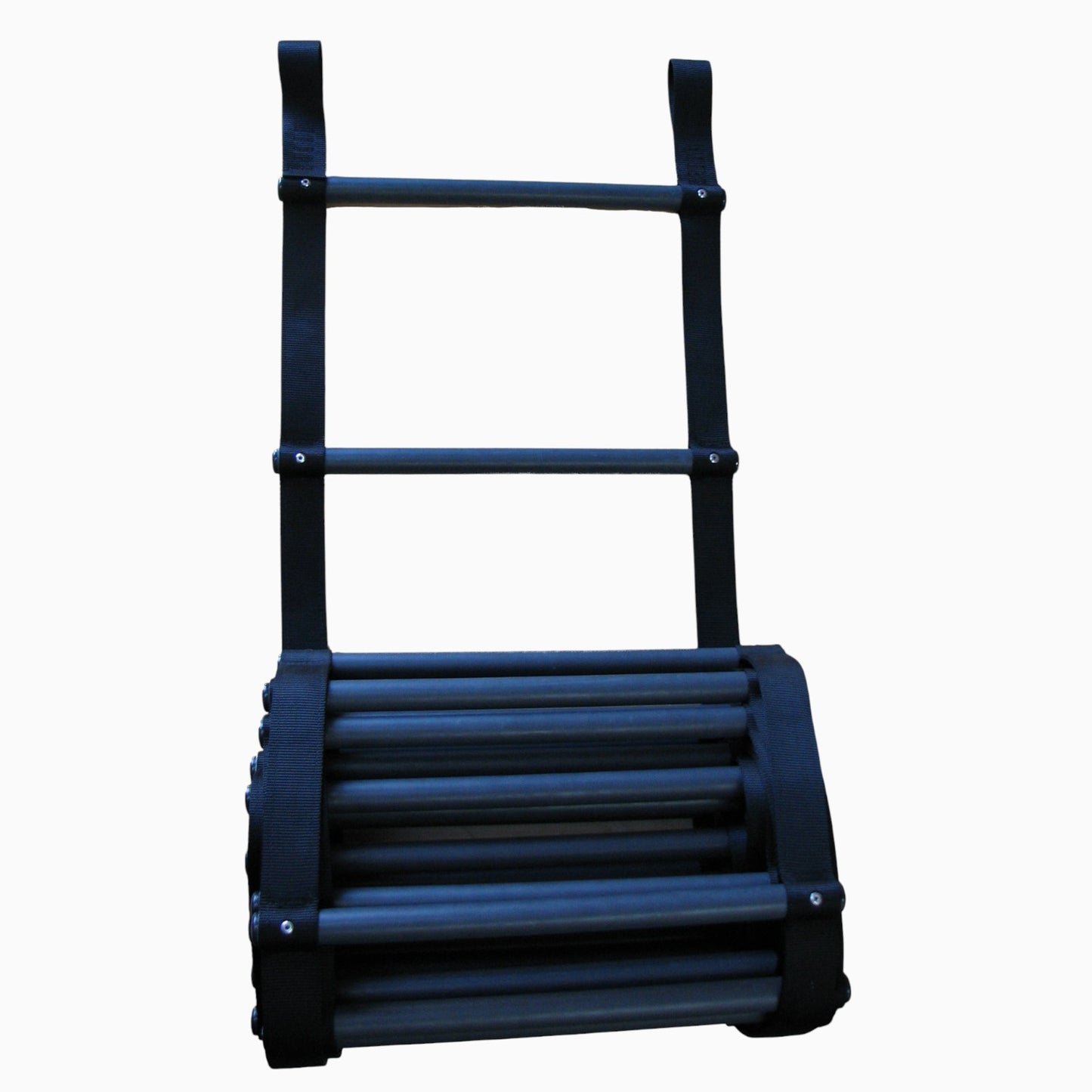

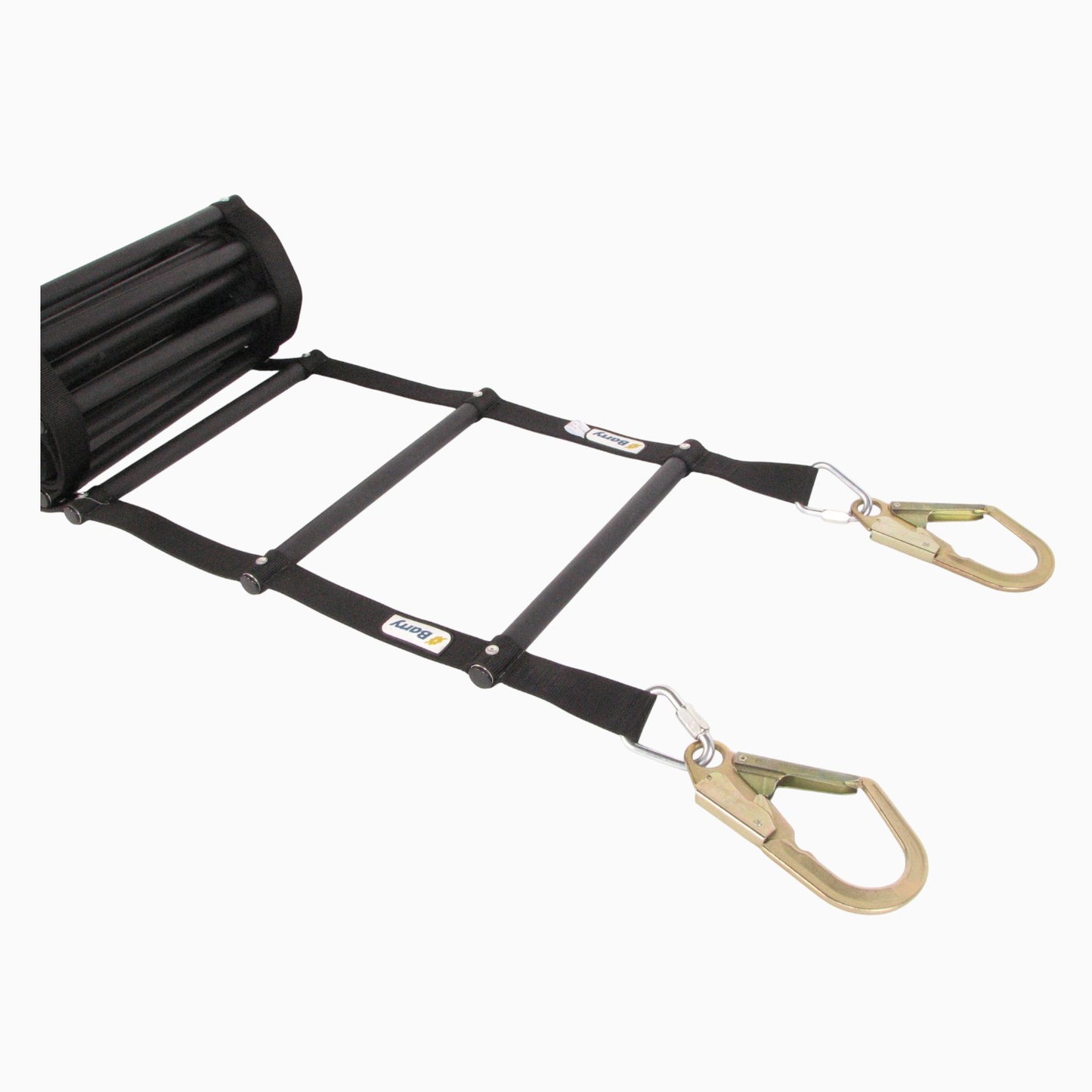

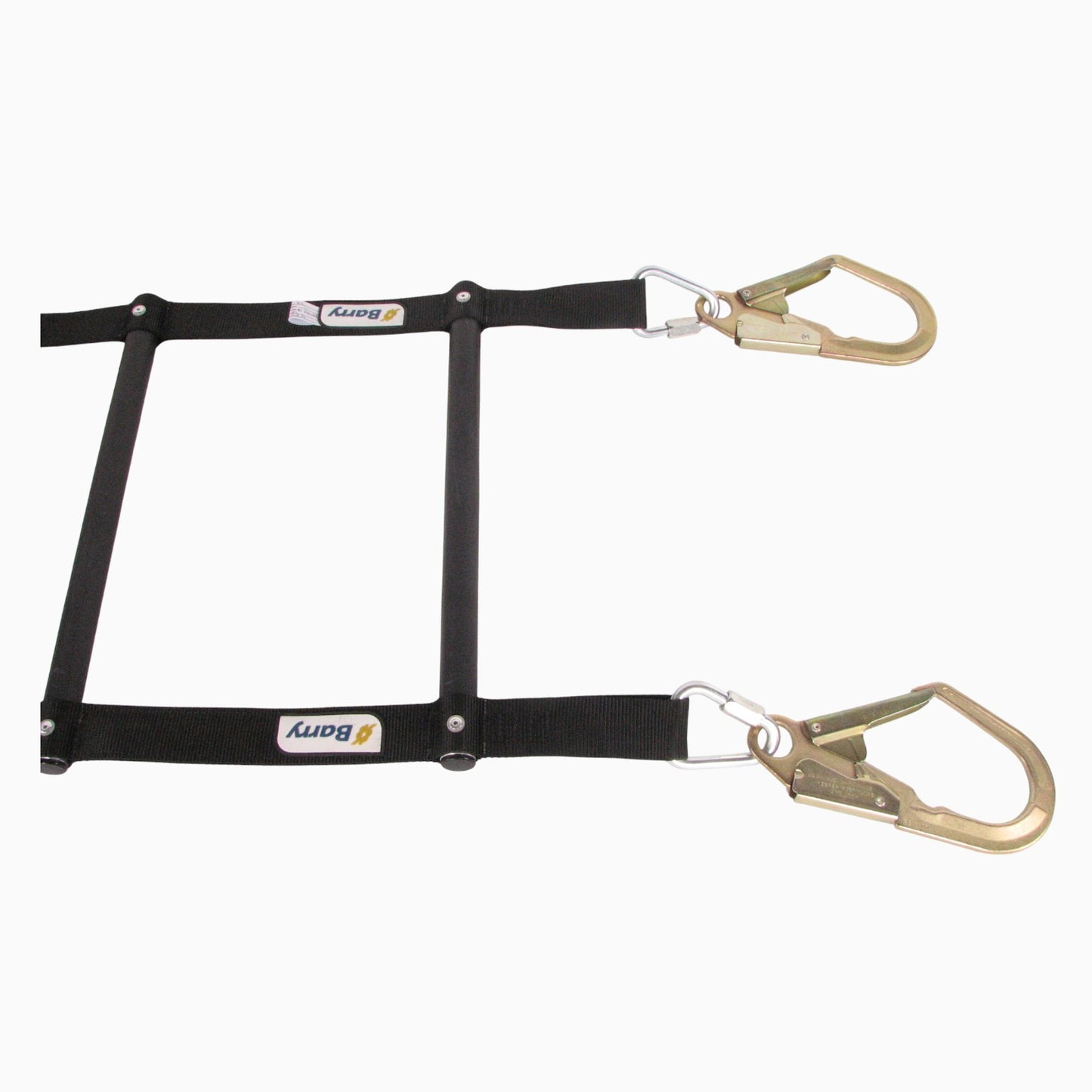

This ladder is designed for temporary vertical access. The webbing ladder is useful in many applications where rigid rail ladders are not practical or could put users or other workers at greater risks.
Specifications
- Ladder Width: 45cm (18'')
- Nylon Webbing: 45 mm (1¾")
- Sewn connecting loops on both ends of each rail
- Aluminum Rungs: 25 mm (1") diameter
- Vertical rung spacing: 30 cm (12")
- Distance between rails: 35.5 cm (14'')
- Maximum length: 7.6 m (25')
- Safe working load: 113 kg (250 lb) - one person only
Variations:

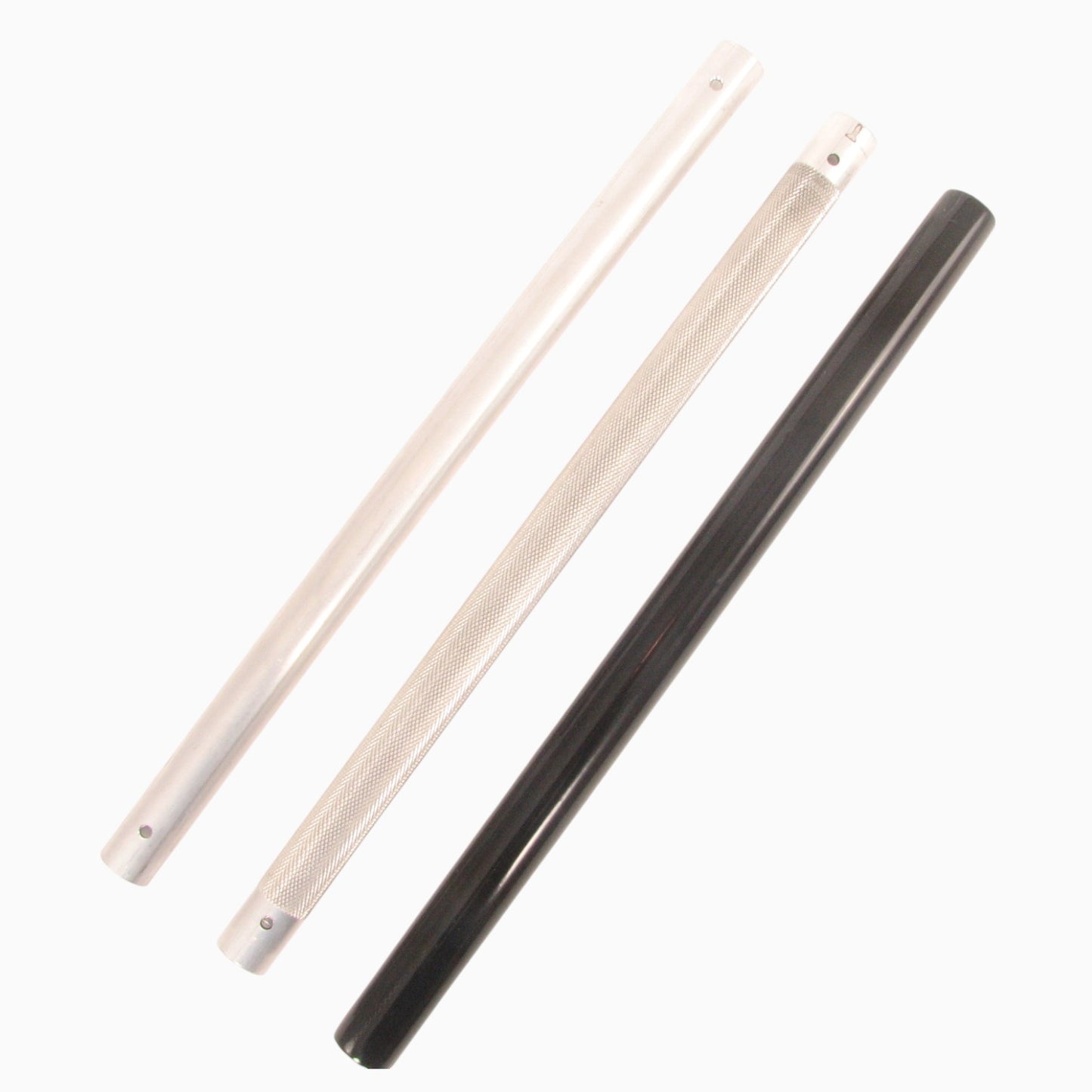

# ECH-S: Webbing ladder with bare aluminum rungs
# ECH-S-M: Webbing ladder with non-slip knurled rungs
# ECH-S-S: Webbing ladder with black covered rungs
Options:

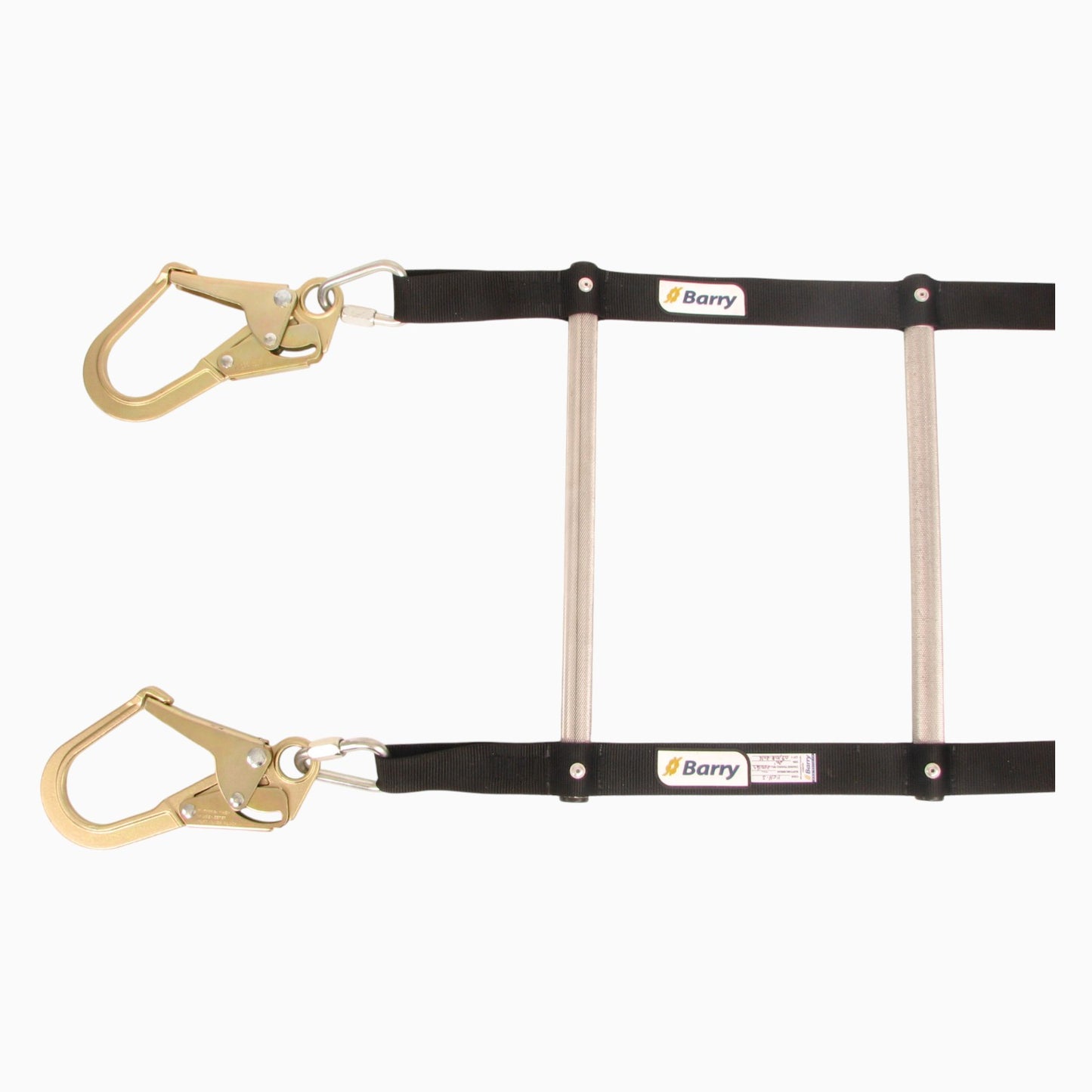

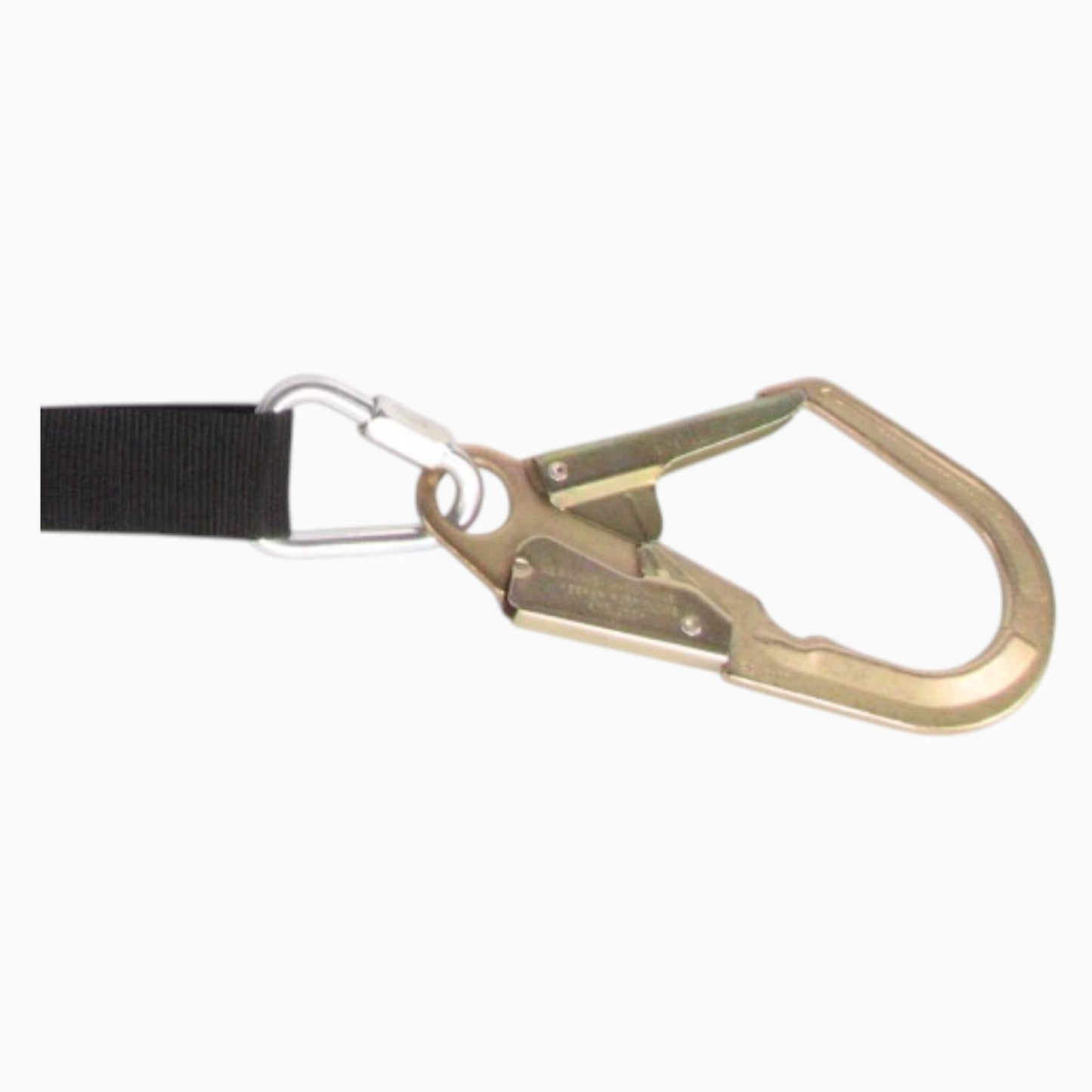

- Snap hooks for top connection

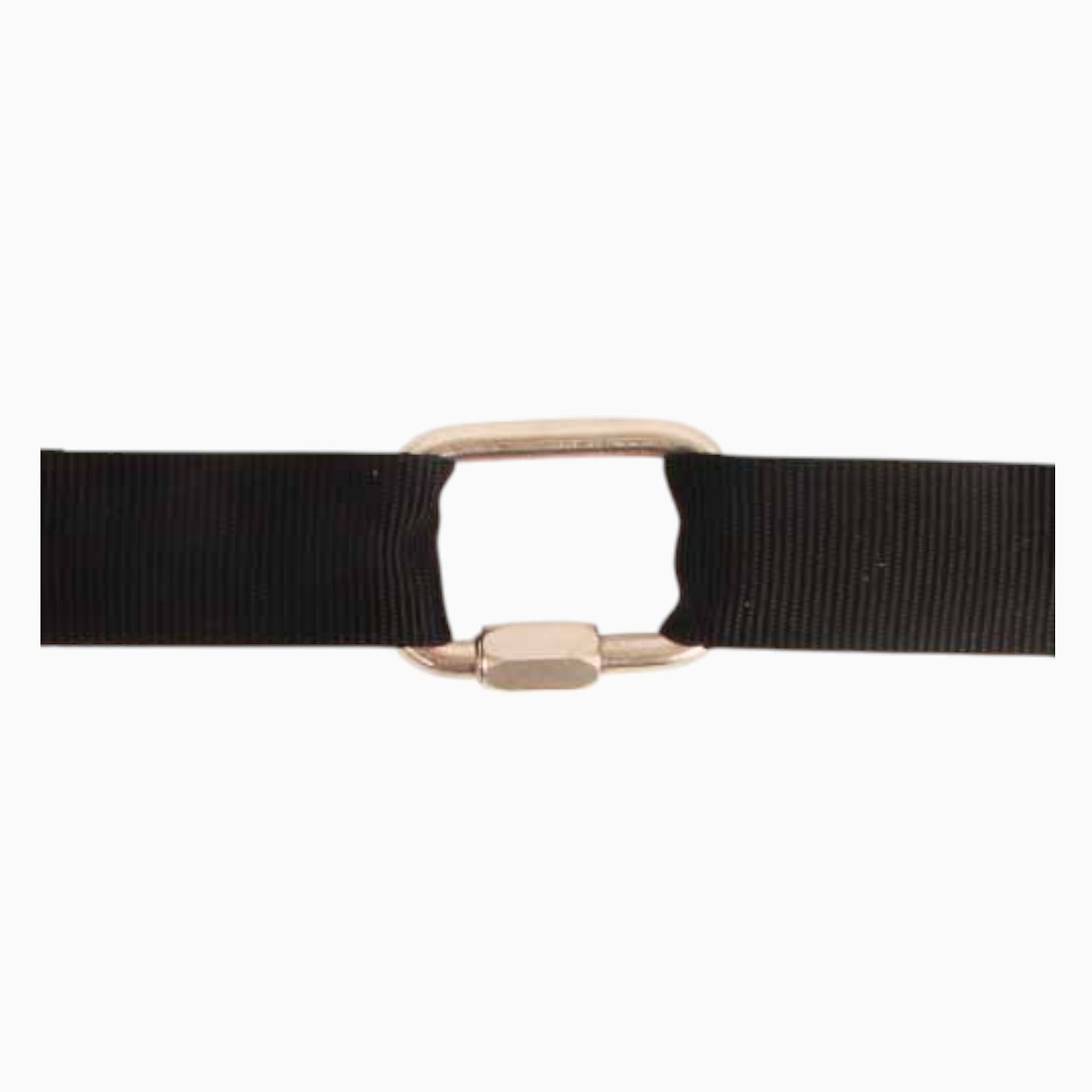

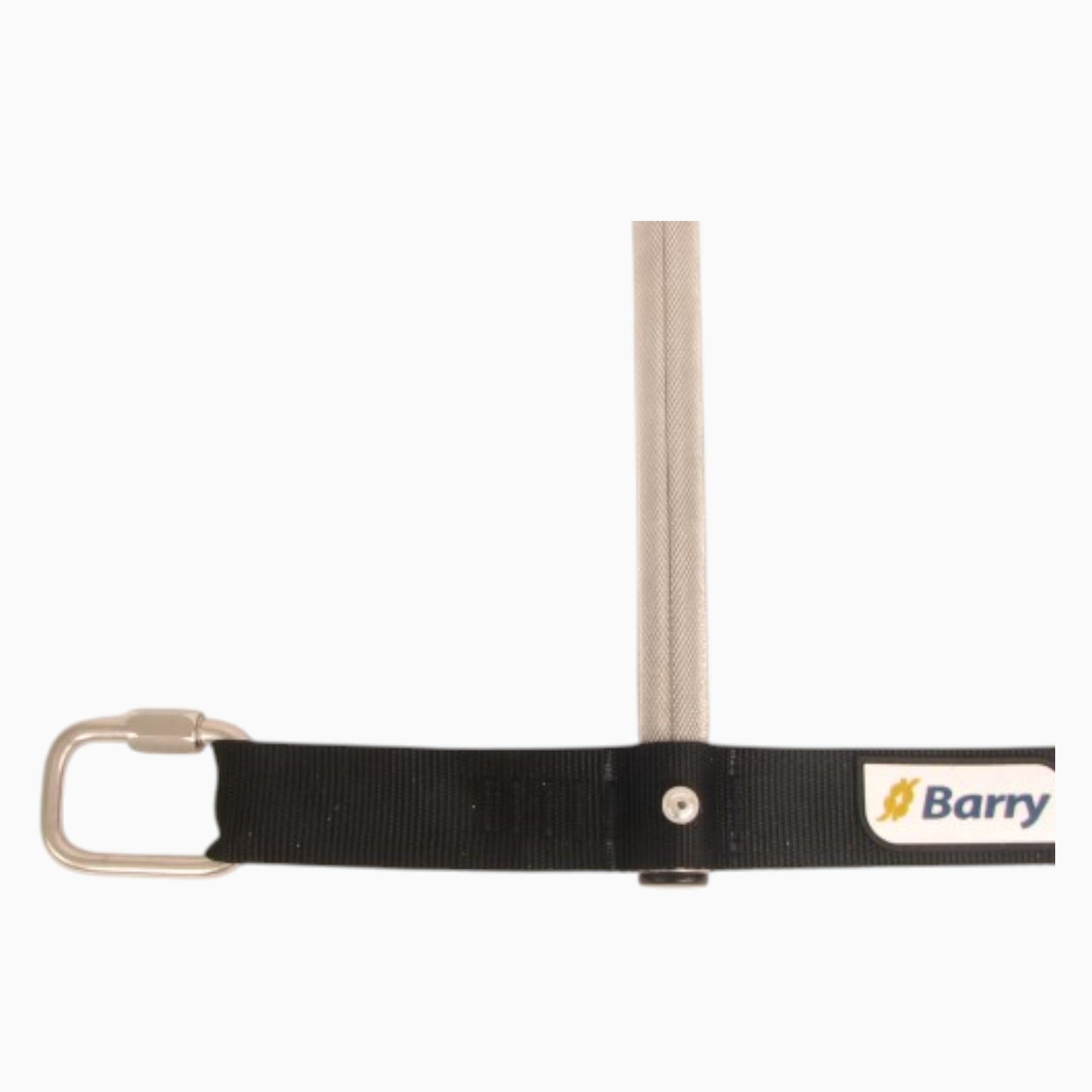

- Square quick links to connect multiple ladders together
Service Life: Max. 10 years (On-Condition). Inspect annually (or more frequently for intensive use), as per User Instructions Manual.
