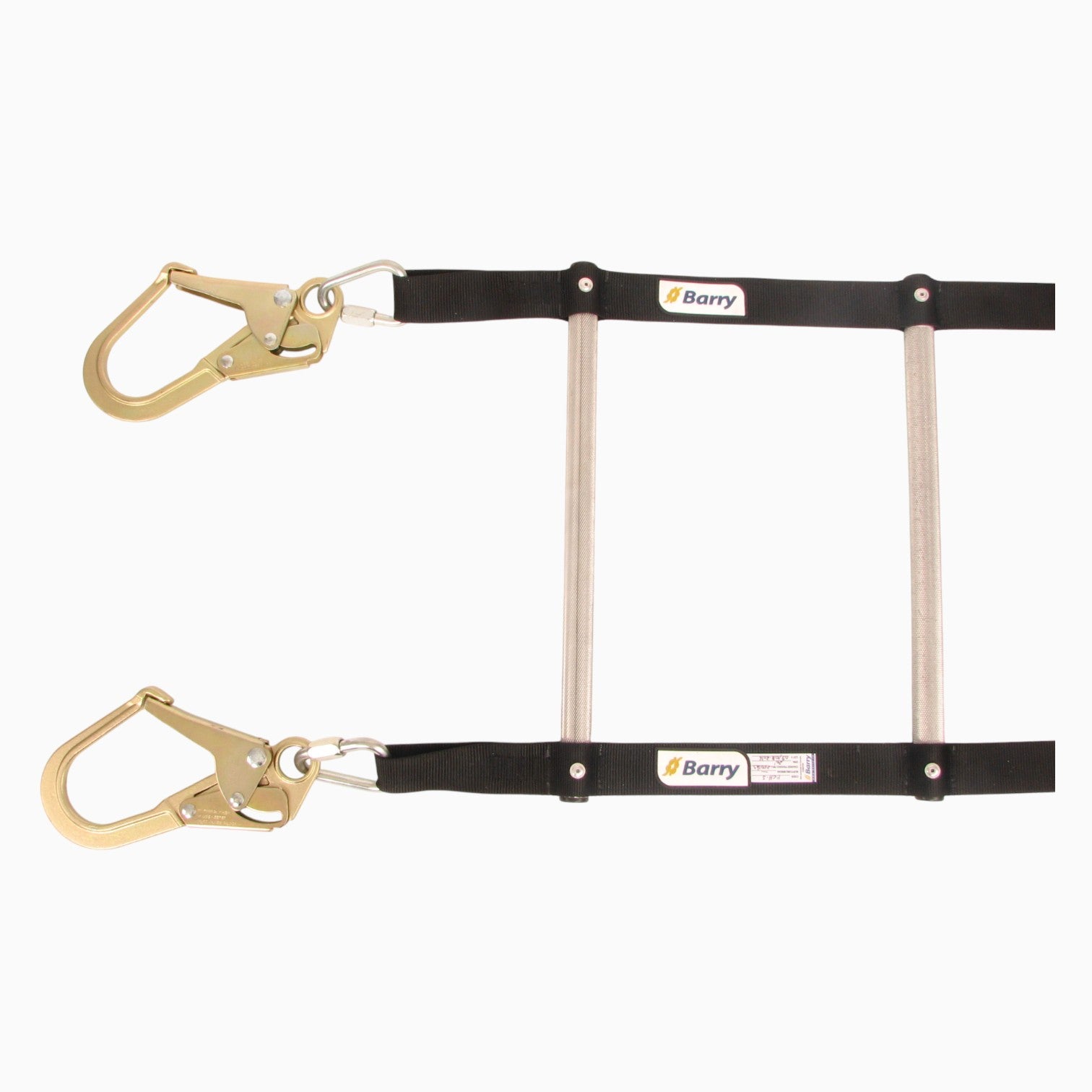

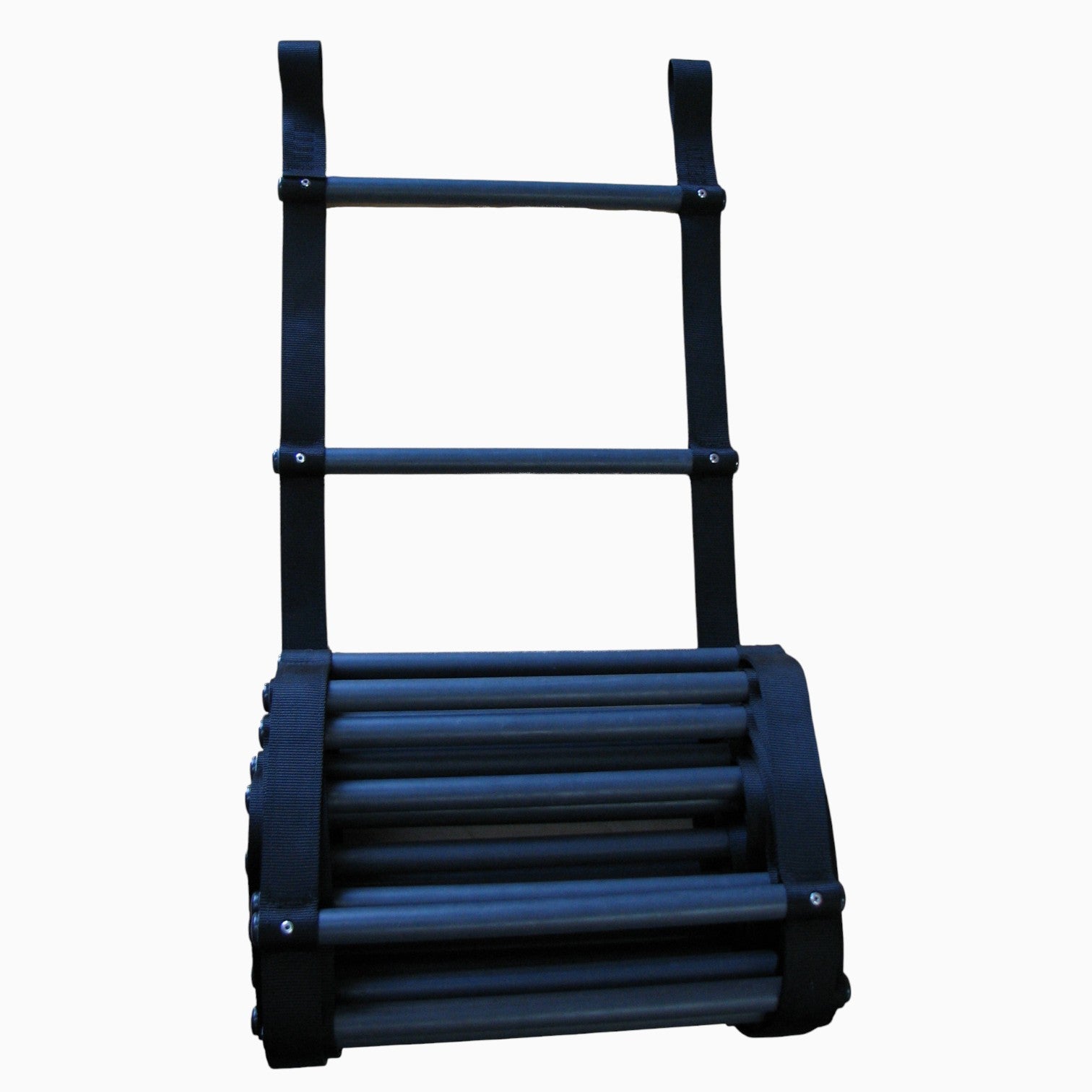

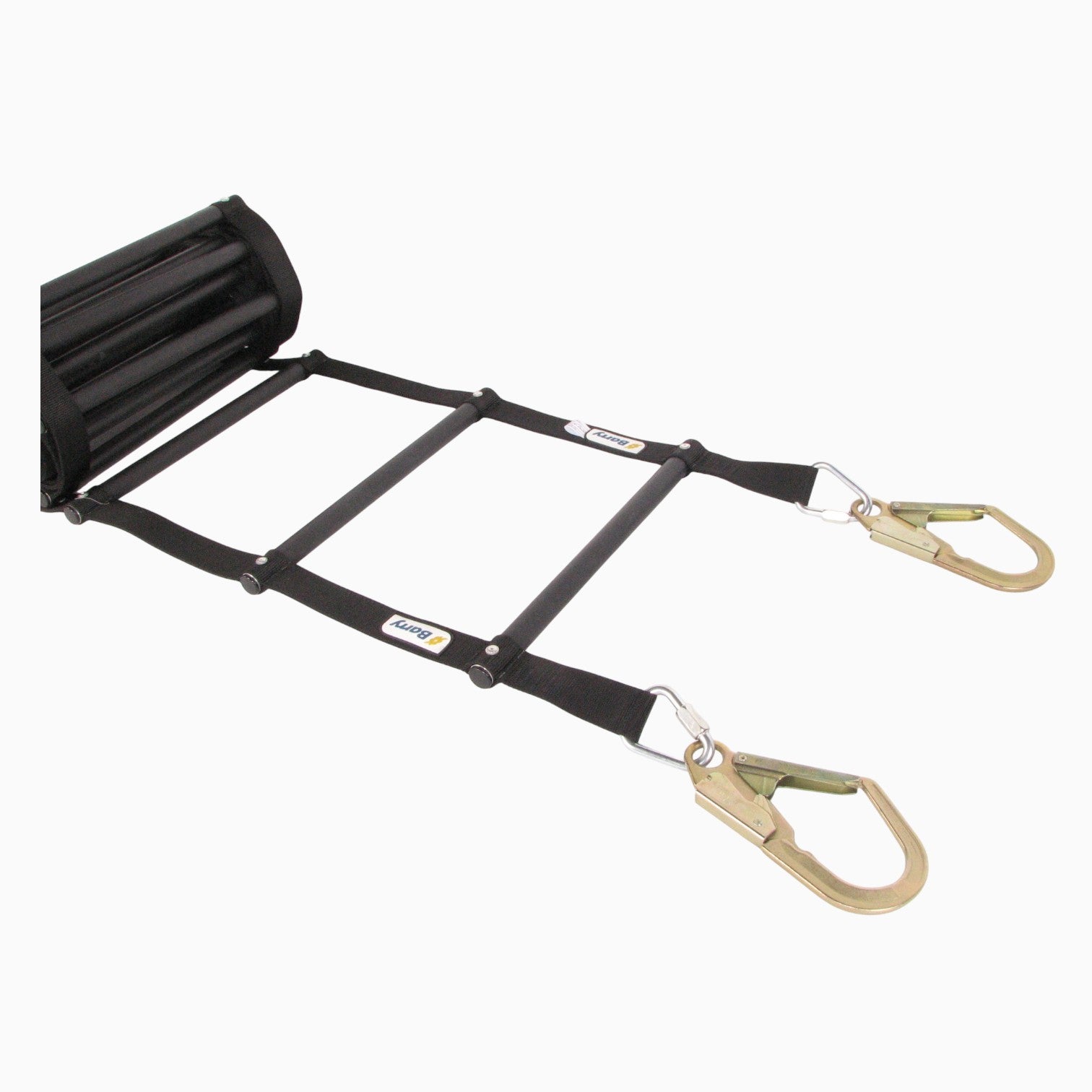

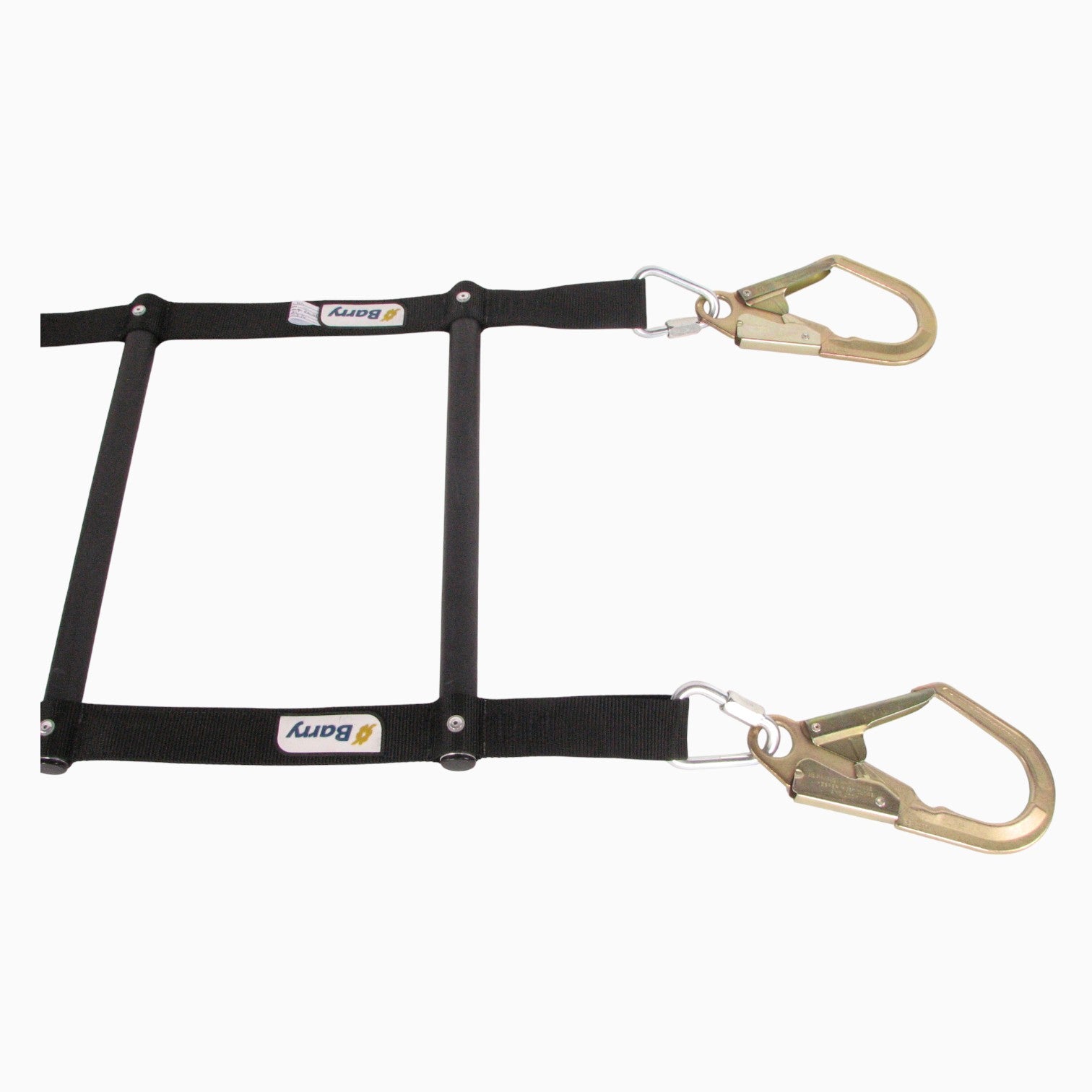

This ladder is designed for temporary vertical access. The webbing ladder is useful in many applications where rigid rail ladders are not practical or could put users or other workers at greater risks.
Specifications
Ladder Width: 45cm (18'')
Nylon Webbing: 45 mm (1¾")
Sewn connecting loops on both ends of each rail
Rungs: 25 mm (1") diameter aluminum or 32 mm (1,25") diameter FRP
Vertical rung spacing: 30 cm (12")
Distance between rails: 35.5 cm (14'')
Maximum length: 7.6 m (25')
Safe working load: 113 kg (250 lb) - one person only
Variations:

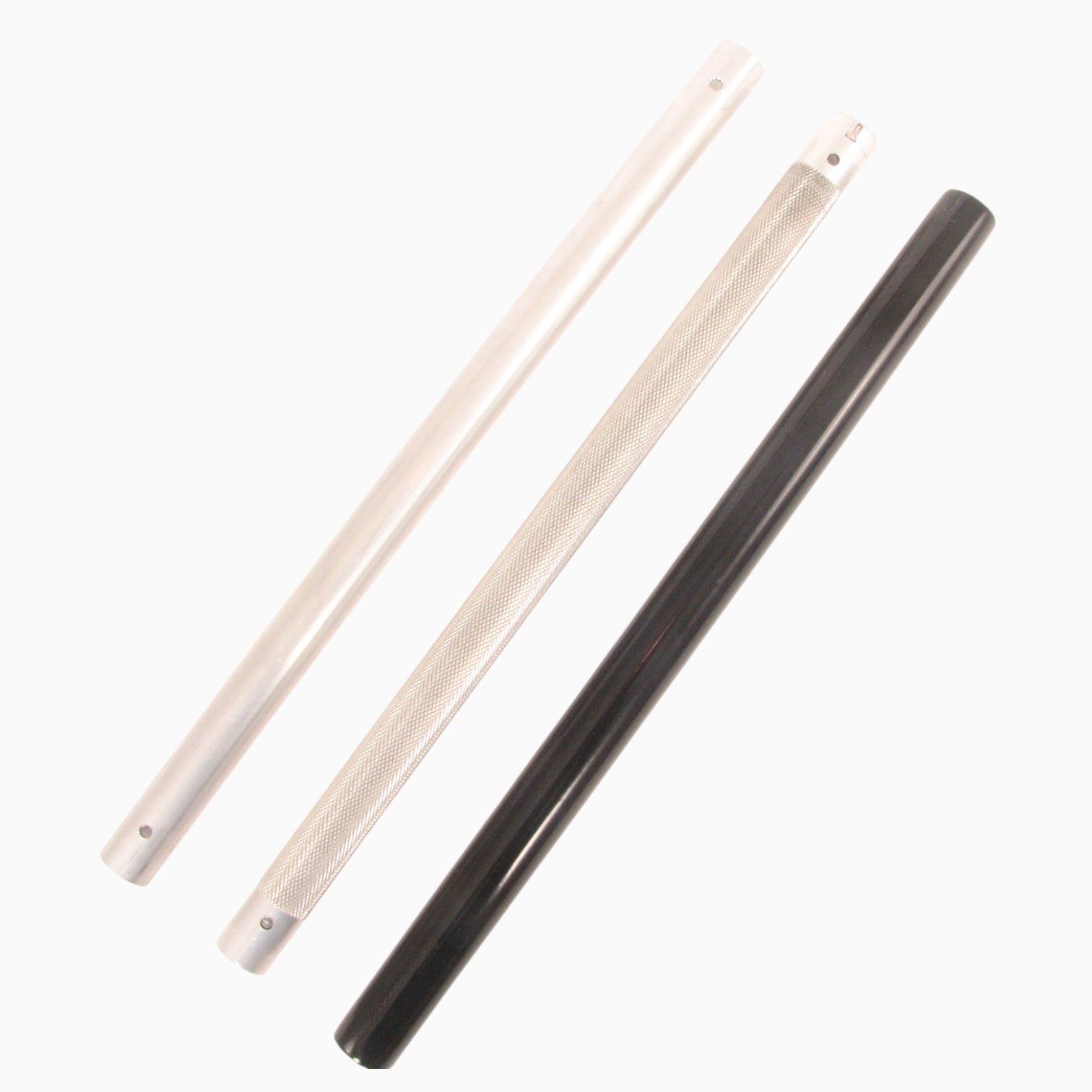

# ECH-S: Webbing ladder with smooth aluminum rungs # ECH-S-M: Webbing ladder with non-slip knurled aluminum rungs # ECH-S-F: Webbing ladder with fiberglass reinforced plastic (FRP) rungs
Options:

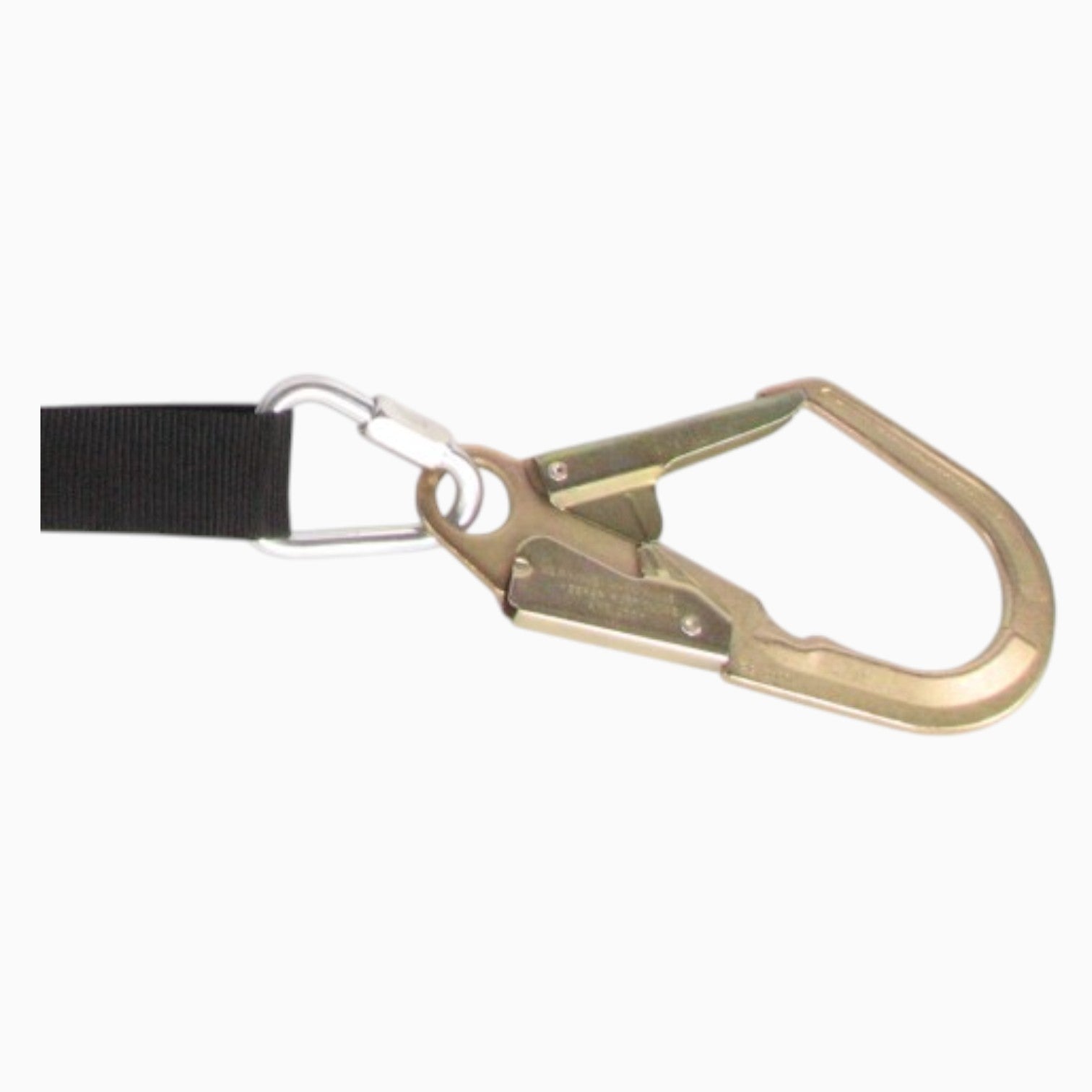

Snap hooks for top connection

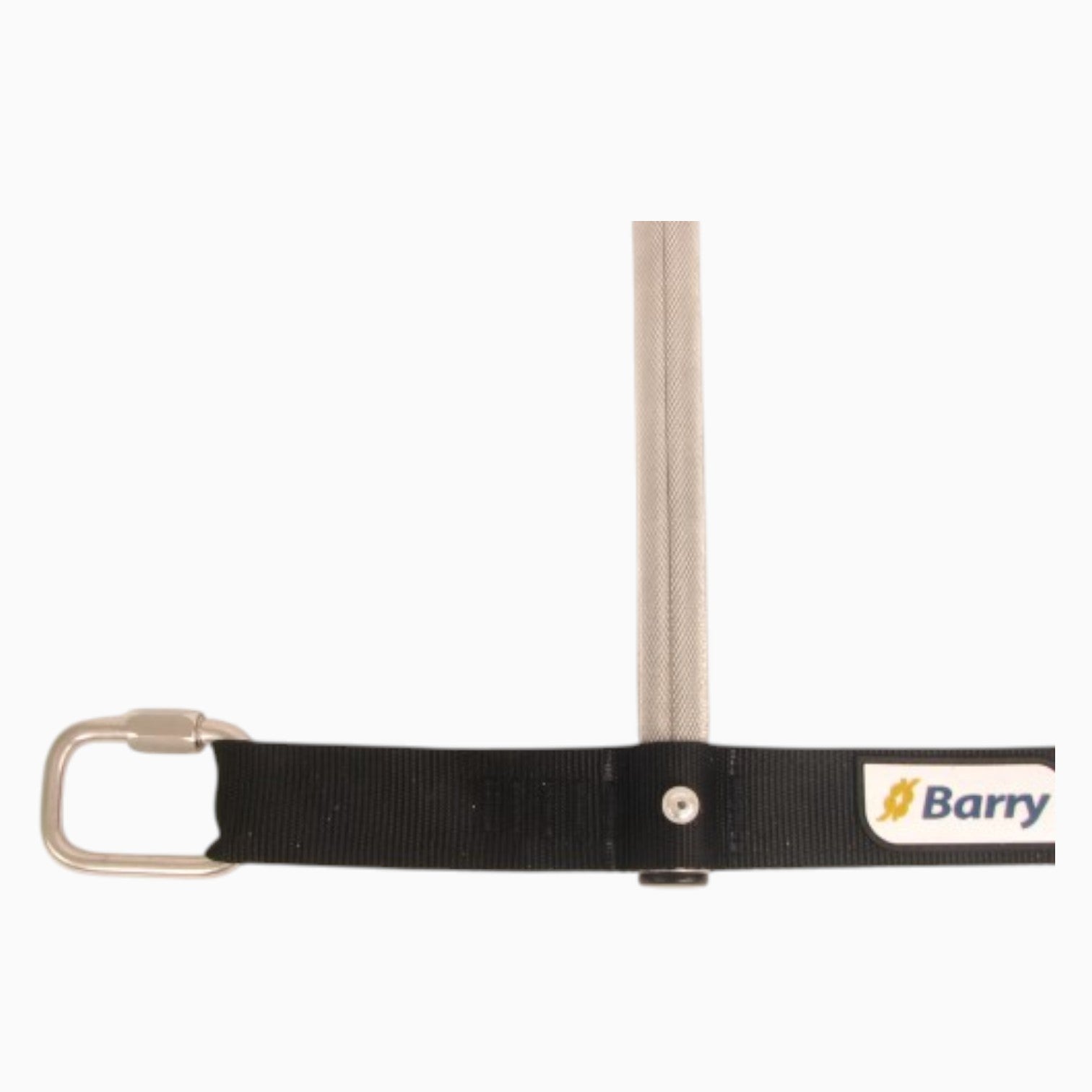

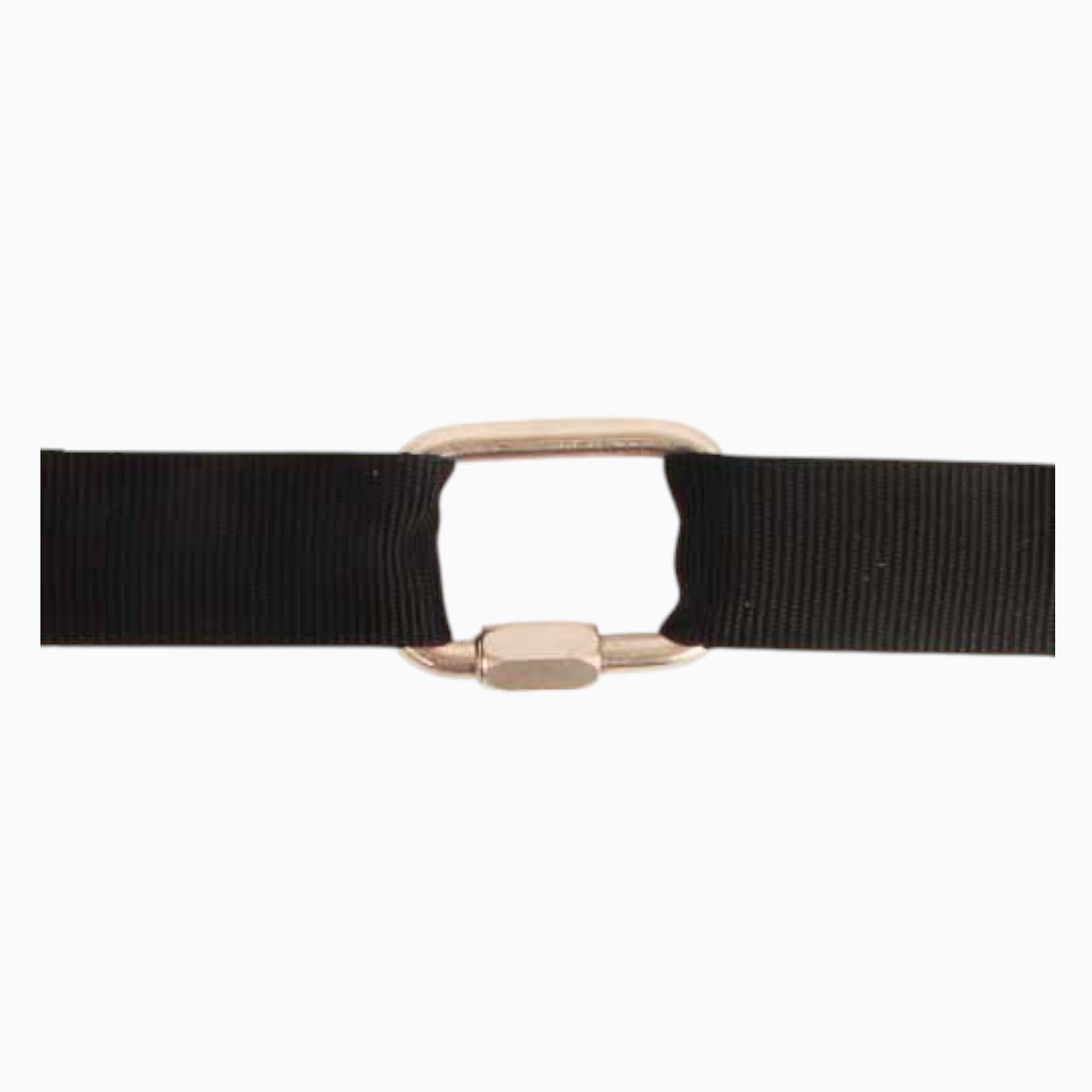

Square quick links to connect multiple ladders together
Service Life: Max. 10 years (On-Condition). Inspect annually (or more frequently for intensive use), as per User Instructions Manual.
