Barry’s non-wired helicopter longline systems are designed for operators who do not require an internal electrical cable or powered line within the longline itself.
Our lightweight synthetic longline systems focus on simplicity, durability, and handling for utility, forestry, construction, and external load missions.

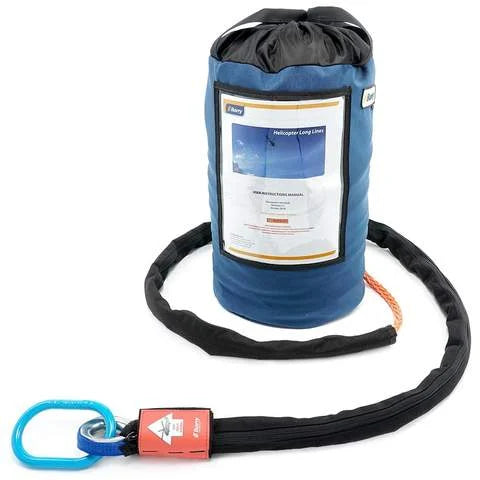

System Includes
Synthetic rope longline (Dyneema® fiber)
Master link at top end
Protective end-covers (top & bottom)
Permanent ID tag
Certificate of compliance (COC)
User instructions manual
Transport/storage bag
Optional / Accessories
Protective zipper jacket (recommended)
Weighted bottom end-cover for increased load-stability and velocity without load

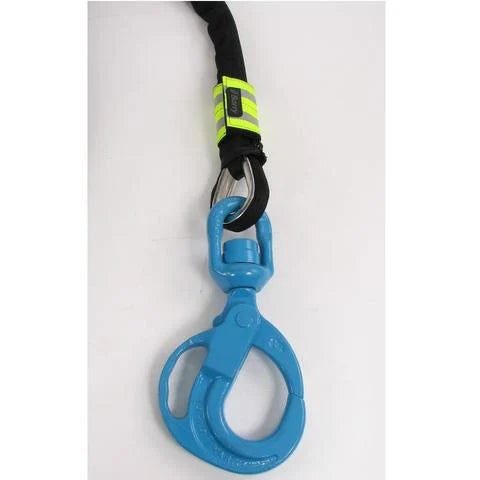

Non-electric swivel hook at bottom end
Custom hardware
Technical
10-year service and shelf life
Proof-loaded to 1.5 x WLL
Supported by Airworthiness Analysis to:
FAA CFR Title 14, Parts 27 & 29
EASA CS-27.865 & CS-29.865
EC Machinery Directive 2006/42/EC
NATO STANAG 2286
NATO STANAG 3542
Standard lengths: 25’, 50’, 75’, 100’, 125’, 150’ and 200’ (Other lengths available upon request)
Product Code
Diameter
Working Load Limit
Weight (for 100’)
BLL-3000
7/16’’
3 000 lb
8 lb
BLL-4500
1/2’’
4 500 lb
9 lb
BLL-6400
5/8’’
6 400 lb
14 lb
BLL-8300
3/4’’
8 300 lb
19 lb
Service and Shelf Life
Max. shelf life
Max. service life
Max. combined life (shelf + service)
10 years
10 years
10 years
Important: Parts are considered on-condition throughout their shelf and service life and must pass inspections and maintenance recommendations as per the manufacturer's user instructions manual.
