Barry synthetic longline systems offer helicopter operators a lightweight, easy-handling and reliable option for external load/underslung applications.
System Includes
Synthetic rope longline (Dyneema® fiber)

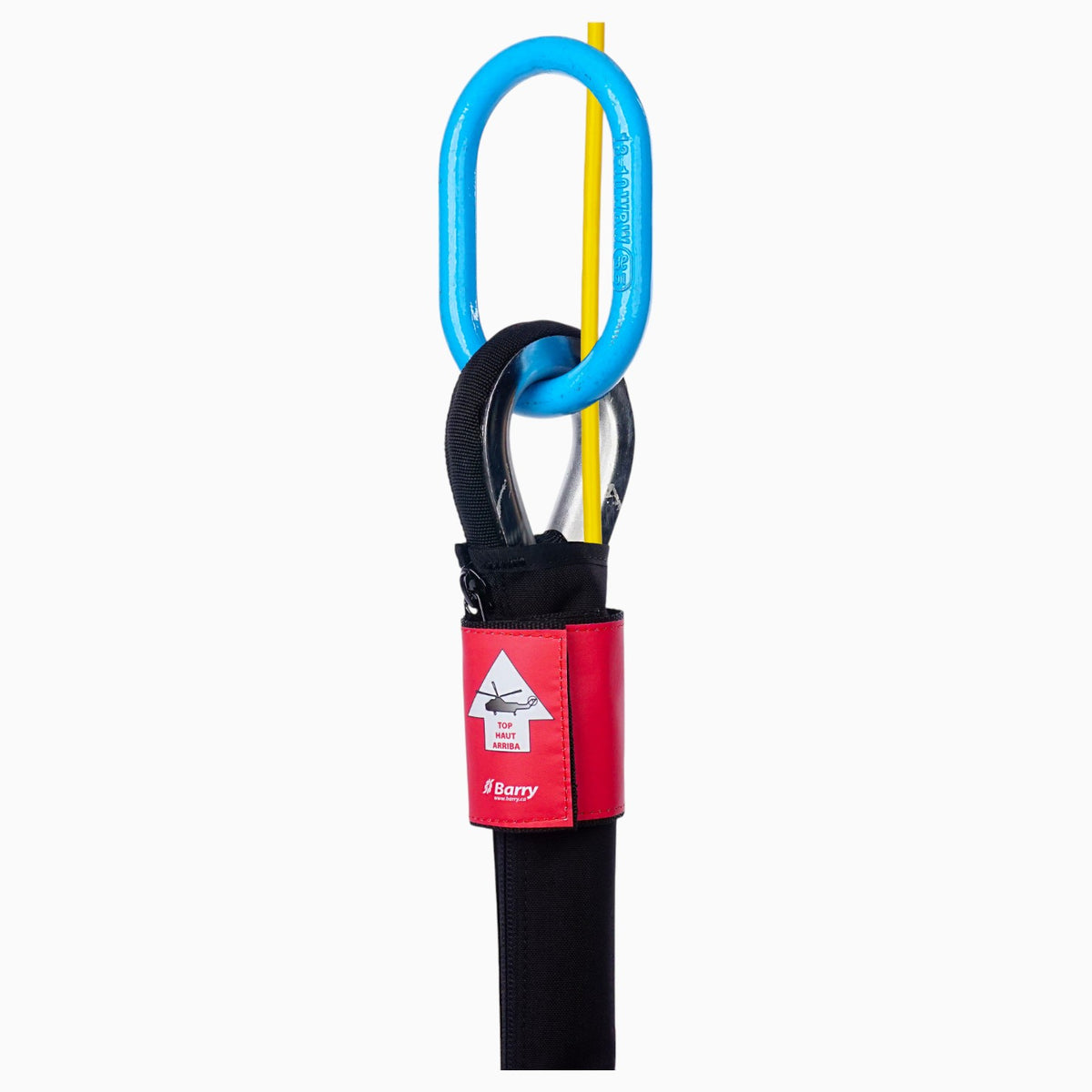

Master link at top end
Protective zipper jacket for easy inspection of longline & wire
Electrical cable with connectors*
Permanent ID tag
Certificate of compliance (COC)
EC Declaration of conformity
User instructions manual
Transport/storage bag
Optional / Accessories
Weighted bottom end-cover for increased load-stability and velocity without load
Protective double zipper jacket

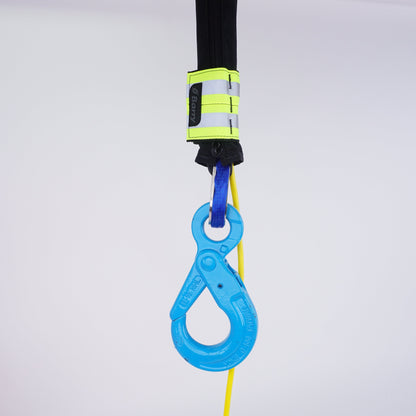

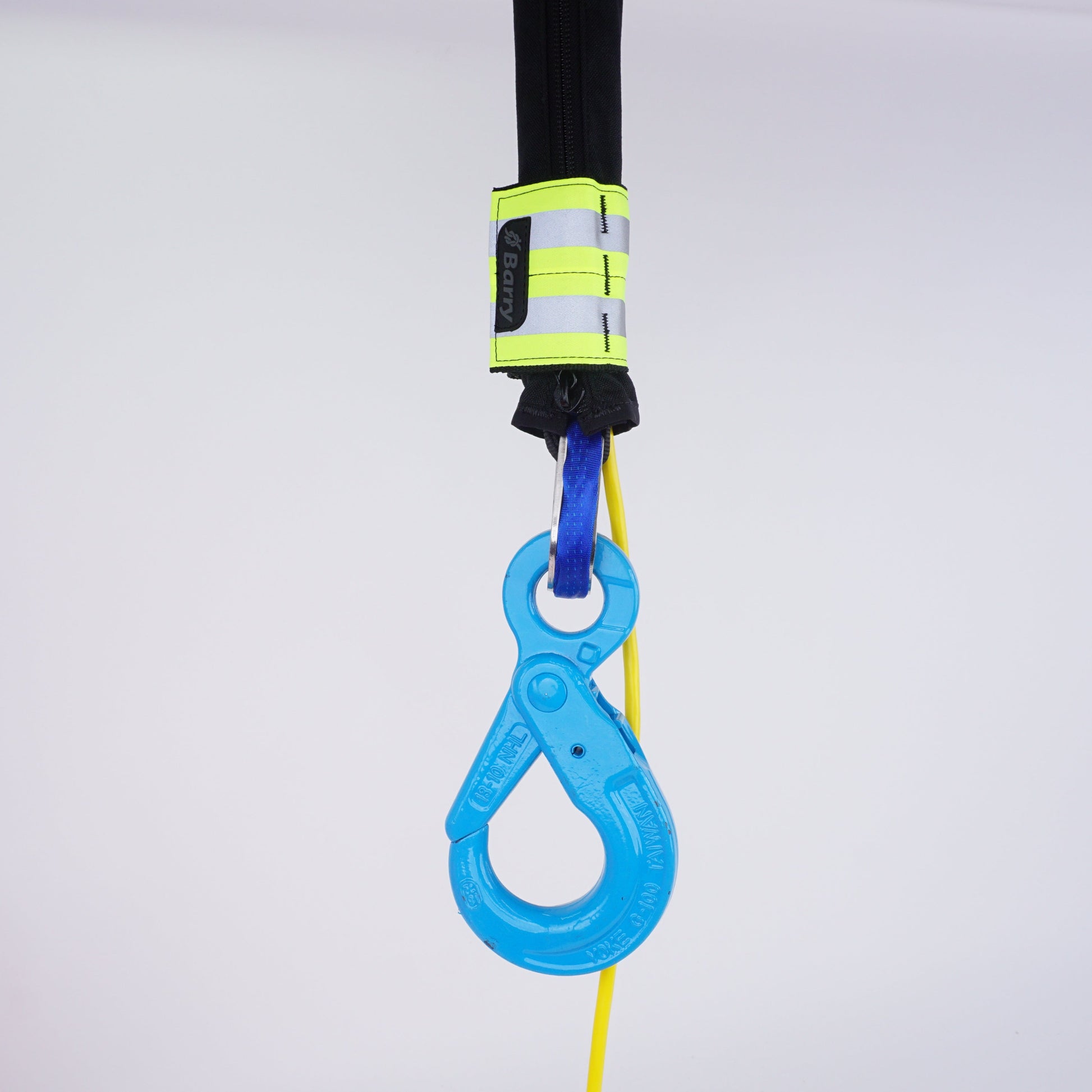

Non-swivel self-locking hook at bottom

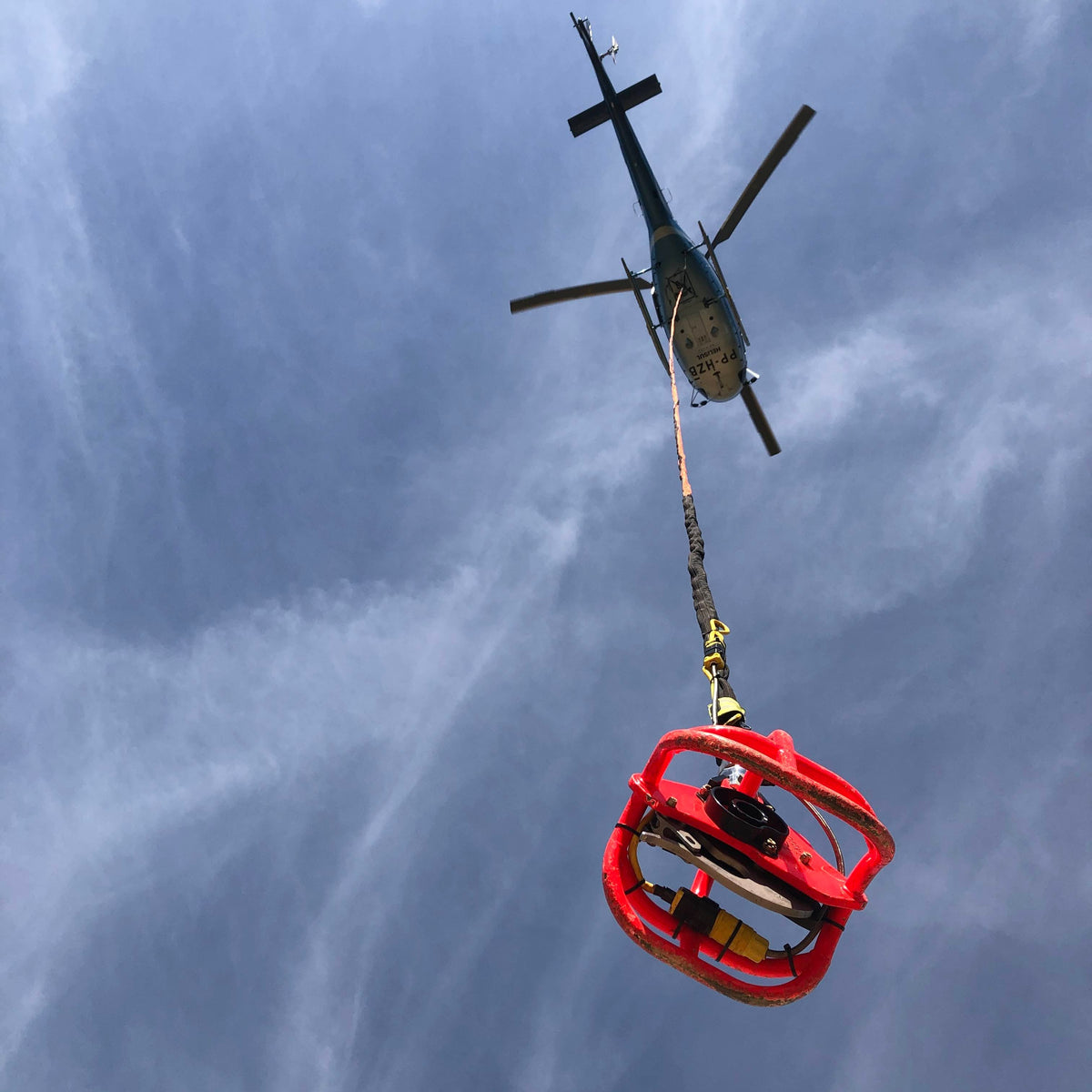

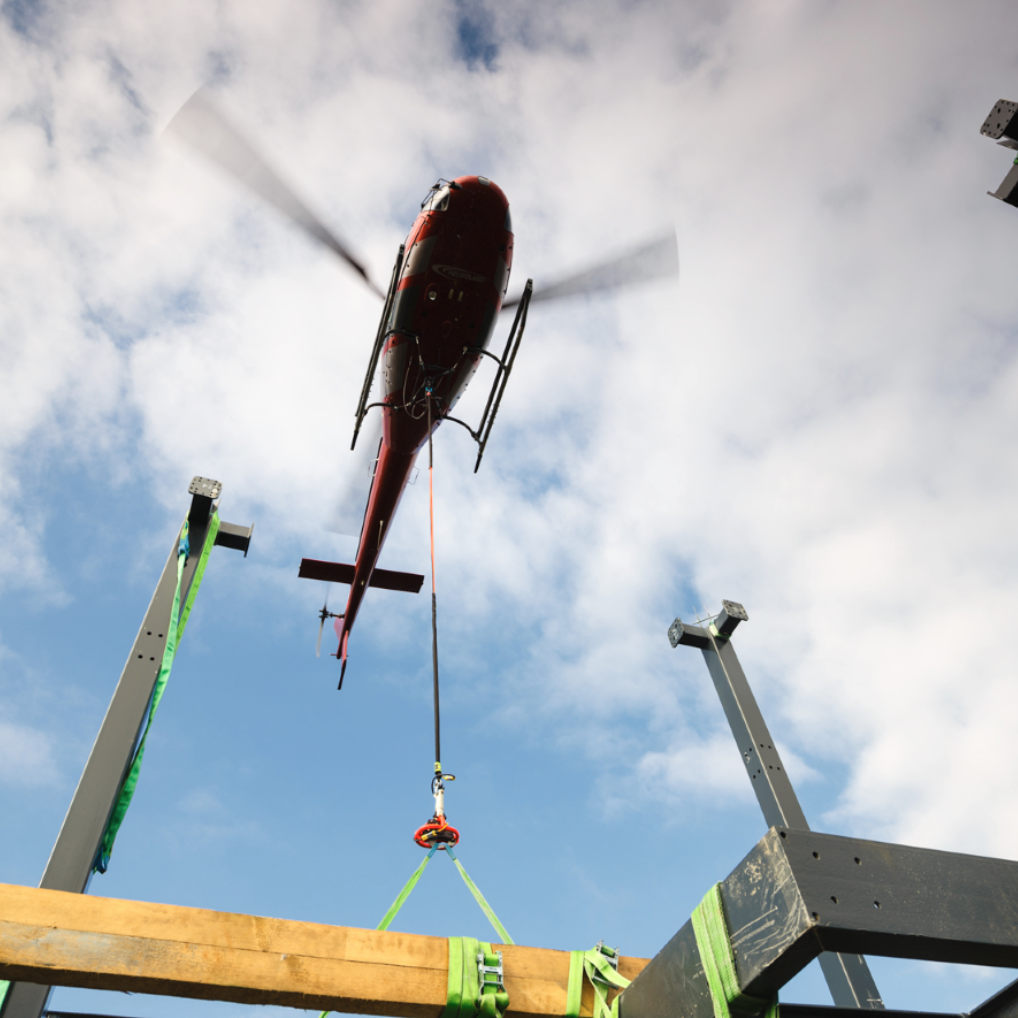

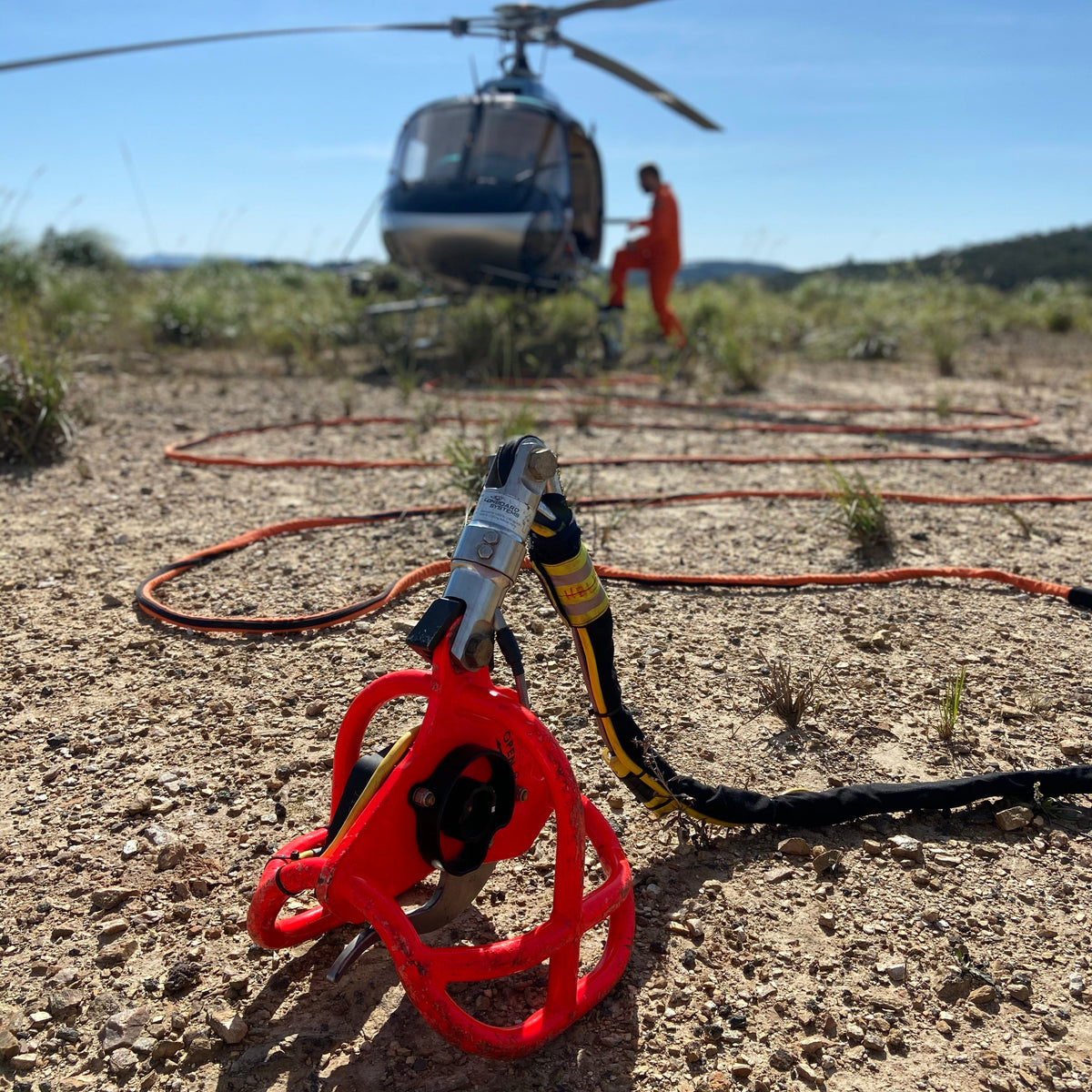

Electric swivel & remote hook
Technical
10-year service and shelf life
Proof-loaded to 1.5 x WLL
Supported by Airworthiness Analysis to FAA CFR Title 14, Parts 27 & 29
EC Machinery Directive 2006/42/EC compliant
Standard lengths: 25’, 50’, 75’, 100’, 125’, 150’ and 200’ (Other lengths available upon request)
Product Code
Diameter
Working Load Limit
Weight (for 100’ w/ LLJZ)
DLL-3000
7/16” (11 mm)
3 000 lb (1 361 kg)
25 lb (11.3 kg)
DLL-4500
1/2” (13 mm)
4 500 lb (2 041 kg)
26 lb (11.8 kg)
DLL-6400
5/8” (16 mm)
6 400 lb (2 903 kg)
30 lb (13.6 kg)
DLL-8300
3/4” (19 mm)
8 300 lb (3 764 kg)
34 lb (15.4 kg)
Service and Shelf Life
Max. shelf life
Max. service life
Max. combined life (shelf + service)
10 years
10 years
10 years
Important: Parts are considered on-condition throughout their shelf & service life and must pass inspections and maintenance recommendations as per the manufacturer’s user instructions manual.
* Standard electrical cable: 3C/14 SJTW/SJOOW 300V (Other gages, conductors and multiple wire configurations available upon request) * Male/Female connectors supplied, to be installed by end-user
Dyneema® is a trademark of DSM. Use of this trademark is prohibited unless strictly authorized.
