Helicopter Lifting Sling Assembly
Add to quote to request pricing.
Quantity
Product Code: BLSH4-4000-005

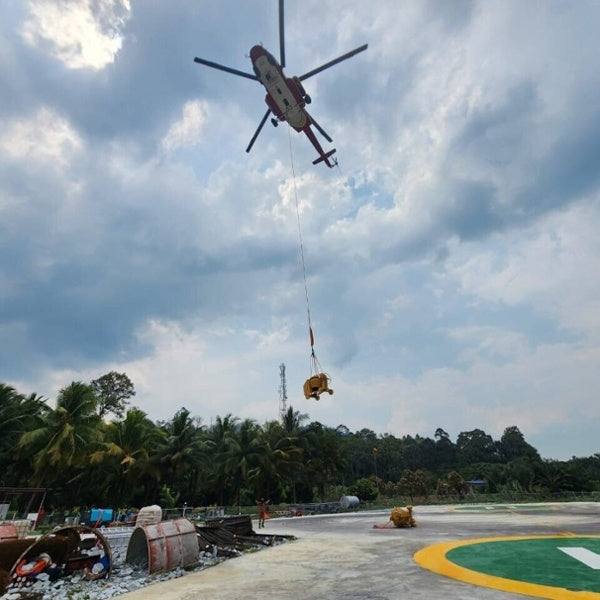

The Barry lifting sling is a lightweight and easy-handling multi-point rigging component for helicopter underslung operations.
System Includes
- 4 sling legs (Dyneema® fiber rope)
- Master link at top end
- Self-locking swivel hooks at bottom of each leg (also available without hooks)
- Permanent ID tag
- Certificate of compliance (COC)
- User instructions manual
- Transport/storage bag
- Optional protective jackets available
Technical
- 10-year service and shelf life
Specifications
| Product Code | Rope Diameter | Working Load Limit (with 4 legs attached) |
| BLSH4-4000 | 5/16" (8 mm) | 4 000 lb (1 814 kg) |
| BLSH4-6000 | 3/8" (10 mm) | 6 000 lb (2 721 kg) |
| BLSH4-10000 | 1/2" (13 mm) | 10 000 lb (4 536 kg) |
| BLSH4-25000 | 3/4" (19 mm) | 25 000 lb (11 339 kg) |
| Standard lengths: 6', 10', 12', 16', 20' and 25' (Other lengths available upon request, minimum leg length may apply) |
||
Service and Shelf Life
| Max. shelf life | Max. service life | Max. combined life (shelf + service) |
| 10 years | 10 years | 10 years |
| Important: Parts are considered on-condition throughout their shelf & service life and must pass inspections and maintenance recommendations as per the manufacturer's user instructions manual. | ||
Dyneema® is a trademark of DSM. Use of this trademark is prohibited unless strictly authorized.
