Key features include:
- Superior dielectric properties for added safety in electrical environments
- Meets performance requirement of NFPA 1983 for Life Safety Rope
- This rope represents a significant advancement in insulating rope technology and is a reliable insulating rope solution for professionals operating in proximity to energized systems

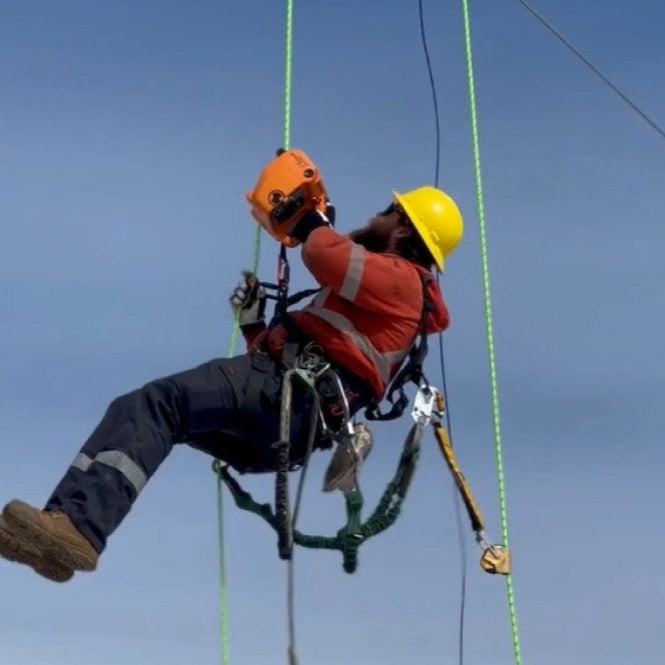

- Can be used in Rope Work Methods, Evacuation and Rescue System, and as Work Ropes or Handlines.
What Makes It Different?

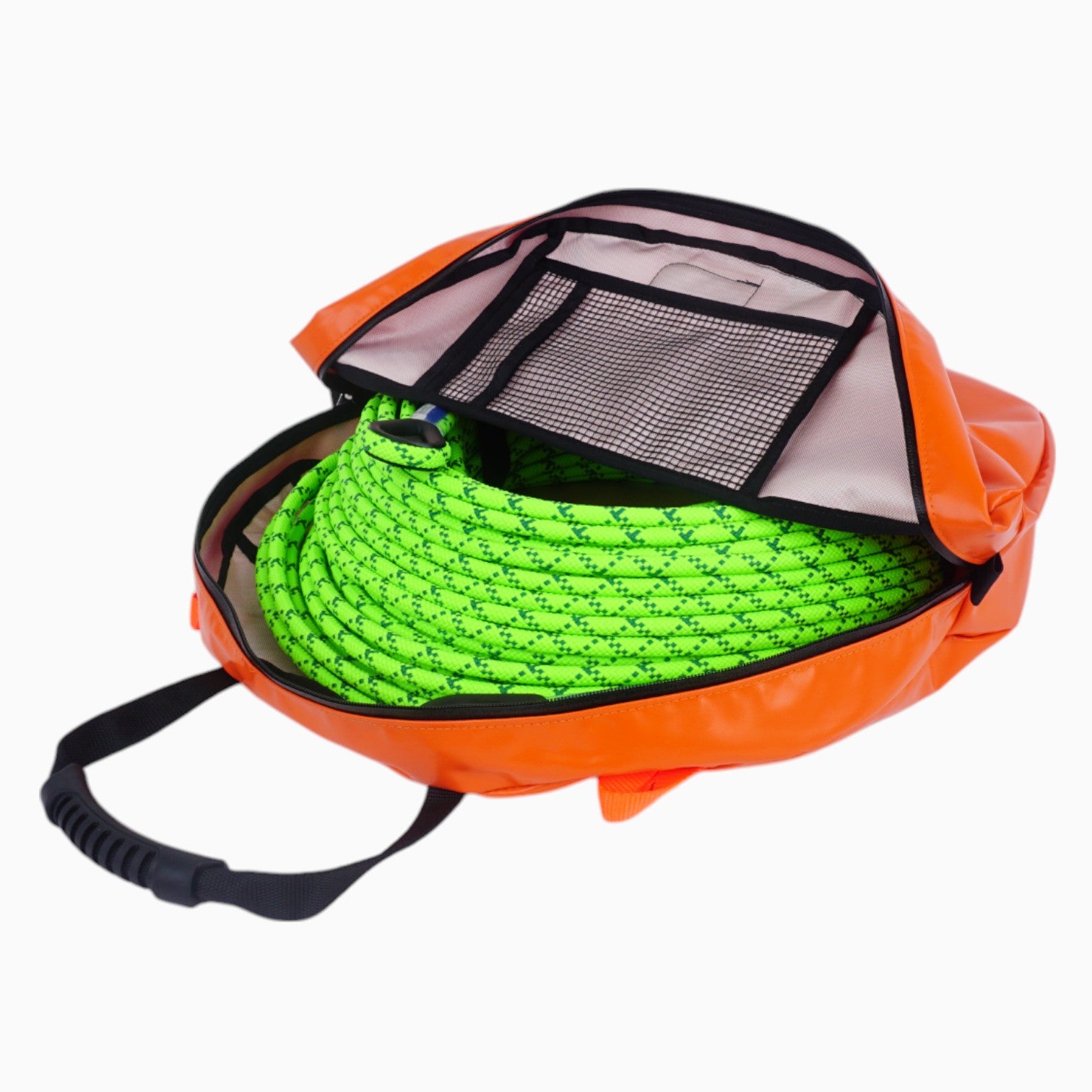

The patent-pending Barry DEW Line Vicinity Rope™ exhibits exceptional performance and tolerance to humidity exposure, thanks to its enhanced proprietary technology. What truly sets it apart is its ability to maintain ultra-low leakage currents values even under most severe conditions.
Specifications:
- Minimum Break Strength*: 7 500 lb (3 401 kg)
- Working Load Limit: 500 lb (227 kg)
- Diameter: 7/16" (11 mm)
-
Elongation (at 10% of MBS): 2.5 %
-
Melting temperature: 254°C (490° F)
-
Standard colors: Green or White (others on request)
*Reduce break strength by 50% when using knots.
Key Features of VL-UK Vicinity Ropes:
- Superior dielectric performance
- Can be knotted and used with power ascenders, winches, rope grabs, and pulleys
- Can be reliably field-tested before use

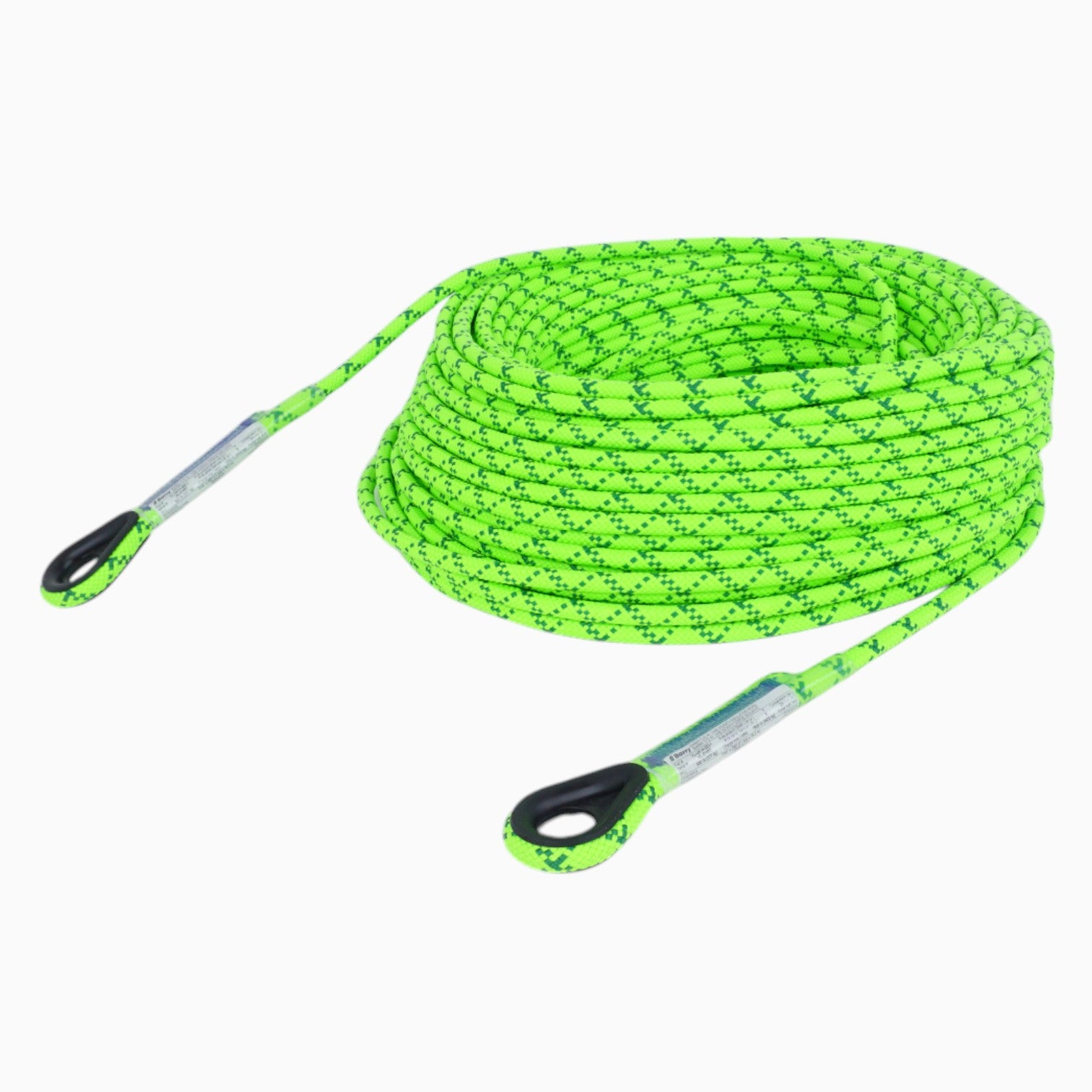

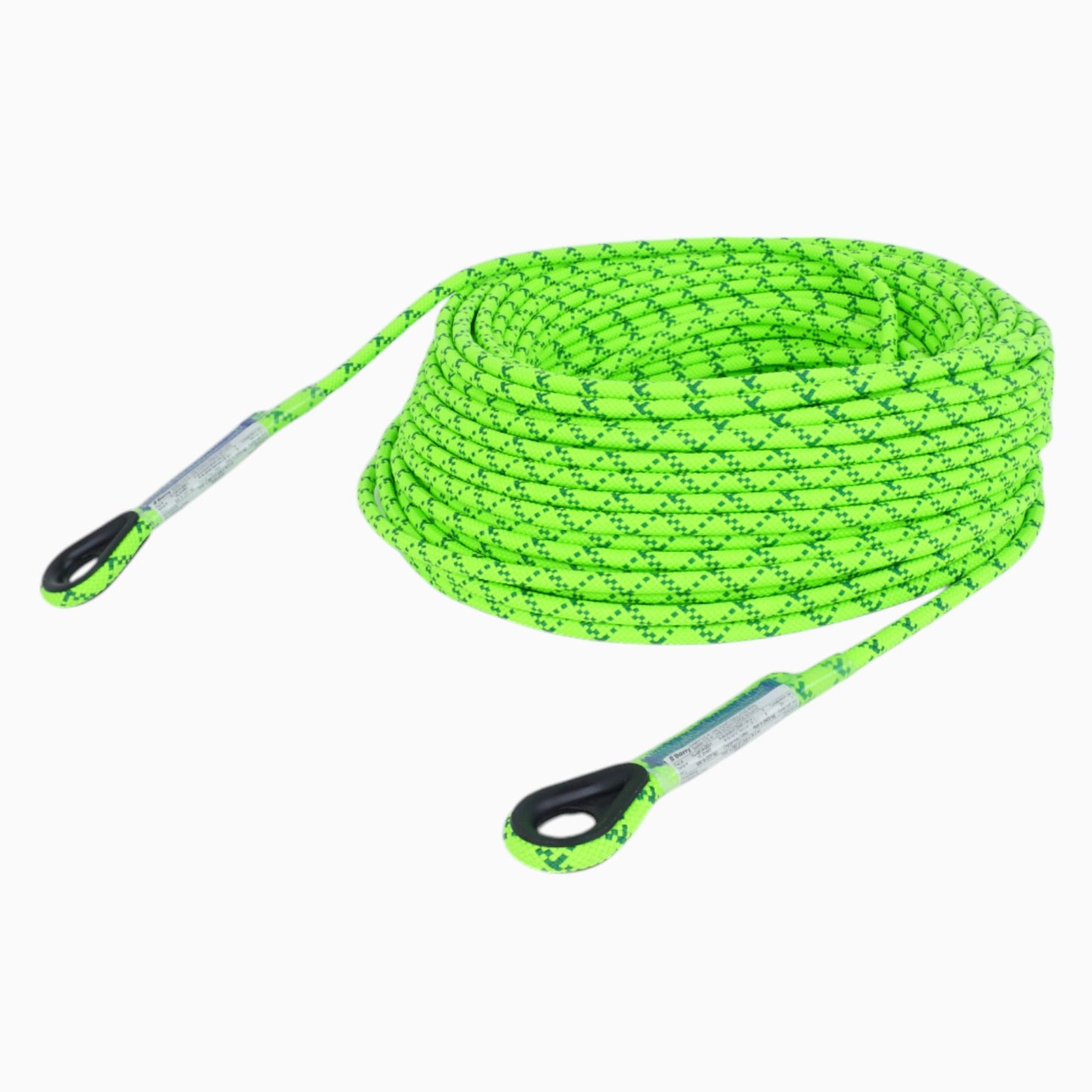

- Factory-assembled in specific lengths and terminations

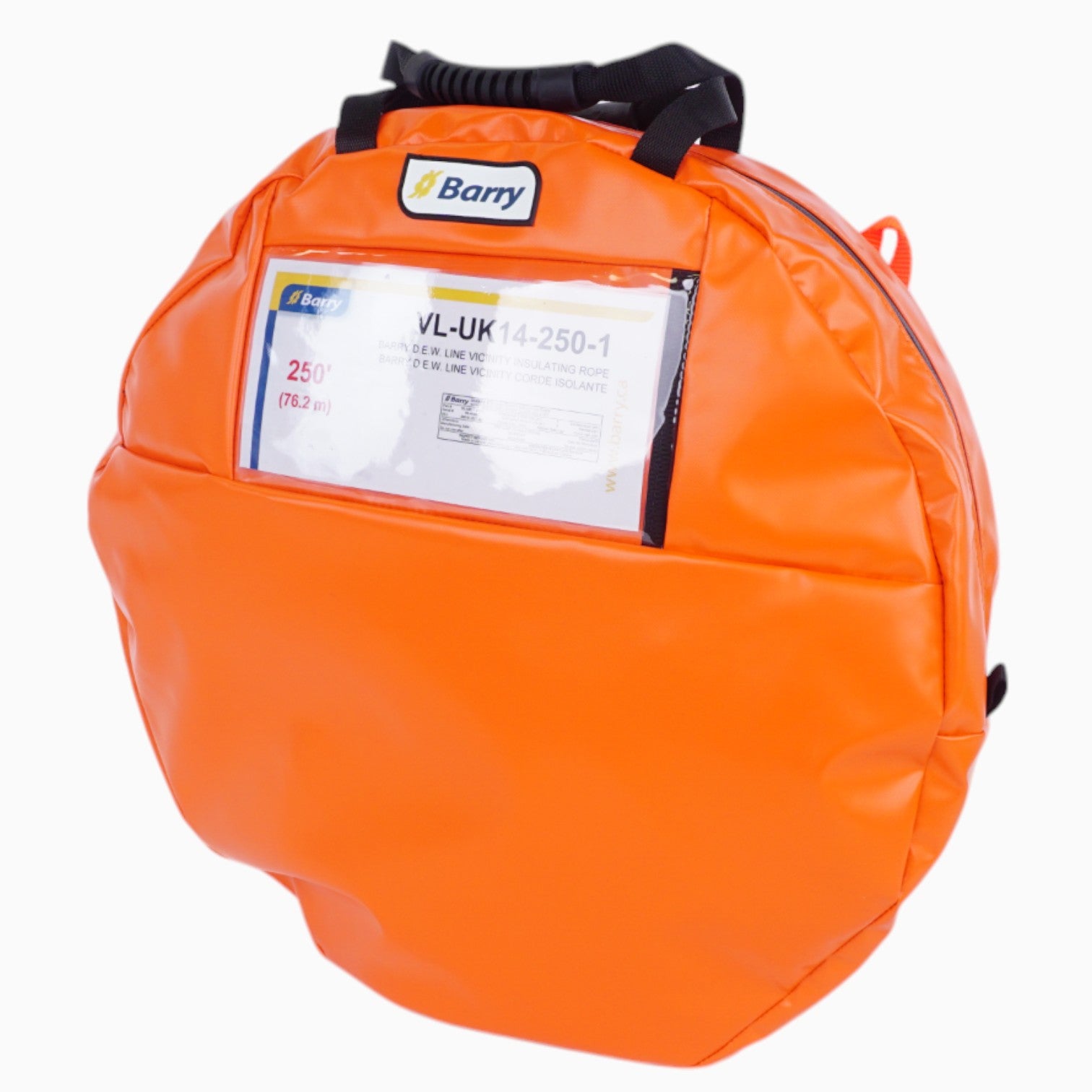

- Supplied with permanent labels (serial number, manufacturing date, WLL, etc.)
- Individual lot test reports available upon purchase
Note:
The VL-UK ropes are not designed to be used in the Live Working Zone. The recommended product for such is the Barry D.E.W. Line® Work and Rescue Ropes which exceed the test requirements of IEC 62192 and ASTM F1701 standards. Consult Barry for assistance in selecting the appropriate products.
