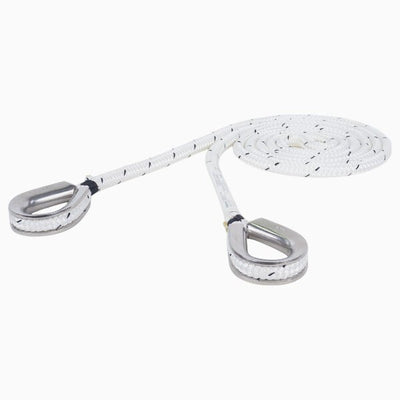

UHMWPE and Polyester Fiber Rope (S200)

Name: UHMWPE and Polyester Fiber Rope (S200)
Brand: Barry Cordage
SKU: S200

Product Code: S200

S200 is a double braided rope constructed with a polyester cover and a UHMWPE fiber core.

Specifications

Applications

Code	Diameter (mm / in)	Weight (kg / 100 m, lb / 100 ft)	Average strength (kg / lb)
S2000602	5 mm (3/16 in)	1.4 kg (0.9 lb)	891 kg (1,965 lb)
S2000802	6 mm (1/4 in)	3.0 kg (2.0 lb)	1,529 kg (3,370 lb)
S2001002	8 mm (5/16 in)	4.3 kg (2.9 lb)	1,826 kg (4,026 lb)
S2001202	10 mm (3/8 in)	6.0 kg (4.0 lb)	3,900 kg (8,600 lb)
S2001402	11 mm (7/16 in)	8.2 kg (5.5 lb)	4,800 kg (10,600 lb)
S2001602	12 mm (1/2 in)	10.6 kg (7.1 lb)	5,400 kg (11,900 lb)
S2001802	14 mm (9/16 in)	14.9 kg (10.0 lb)	9,980 kg (22,000 lb)
S2002002	16 mm (5/8 in)	18.6 kg (12.5 lb)	12,246 kg (27,000 lb)
S2002402	18 mm (3/4 in)	23.8 kg (16.0 lb)	15,880 kg (35,000 lb)
