Barry D.E.W. Line® Dielectric Work Rope


Barry D.E.W. Line® Dielectric Work Rope

Insulating work rope tool offering excellent dielectric properties and which can be knotted. This tool is designed for performing live work on AC or DC energized apparatus.

Highlights

  • Unique insulating properties
  • Knottable
  • Cleanable and easy to maintain and test
  • Exceptionally low leakage current, whether dry or wet
  • Protection from high fault current
  • High strength

Technical Data Sheet
# HL-NP2800

Barry D.E.W. Line® Dielectric Work Rope

Insulating work rope tool offering excellent dielectric properties and which can be knotted. This tool is designed for performing live work on AC or DC energized apparatus.

Highlights

  • Unique insulating properties
  • Knottable
  • Cleanable and easy to maintain and test
  • Exceptionally low leakage current, whether dry or wet
  • Protection from high fault current
  • High strength

Request for information:
Barry D.E.W. Line® Dielectric Work Rope

Specifications

Insulating work rope tool offering excellent dielectric properties and which can be knotted. This tool is designed for performing live work on AC or DC energized apparatus.

Meets or exceeds the dry or wet electrical requirements of:

  • IEC 62192:2009
  • ASTM F1701-12

Arc-Flash rated

  • Resistant to 40 cal/cm2 (category 4)

Features

  • Unique insulating properties
  • Knottable
  • Cleanable and easy to maintain and test
  • Exceptionally low leakage current, whether dry or wet
  • Protection from high fault current
  • High strength
  • Low elongation
  • Light weight and low volume
  • Fully sealed and hydrophobic
  • Smooth surface
  • High abrasion resistance
  • Easy to deploy
  • Excellent resistance to UV
  • Sealed termination with stainless steel thimble at each end

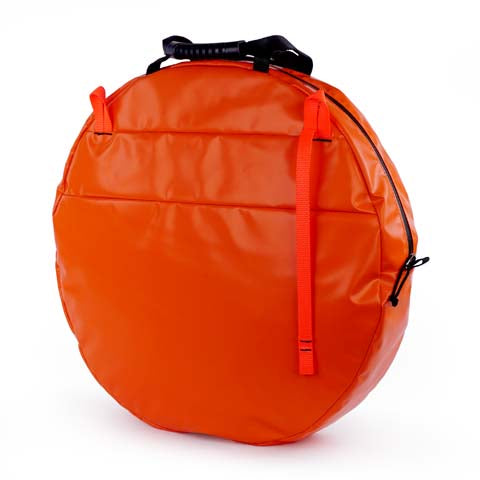

  • Comes with transport bag

SPECIFICATIONS:

  • Minimum Break Strength*: 6 300 lb (2 857 kg)
  • Working Load Limit:1 260 lb (571 kg)
  • Diameter: 1/2’’ (13 mm)
  • Colour: Orange
  • Standard Lengths: 50’ (15.2 m), 100’ (30.5 m), 150’ (45.7 m)


Note:
Available in other lengths. Contact Barry for more information.
*   Reduce break strength by 50% when using knots.

We also recommend:

Frequently Asked Questions (FAQ)

To contact our sales department, please call us toll-free in Canada and the United States at +1-800-305-2673 at extension #232, Monday through Friday, 8:30 a.m. to 12:30 p.m. and 1:00 p.m. to 5:00 p.m. EST (UTC-5). For all other international calls, please call +1-514-328-3888 at extension #232.

These 2 models of work ropes are used for a wide range of applications. Some typical uses for these include:

  • General purpose lifting/pulling tool (i.e., lifting or lowering tools or equipment into a work or maintenance zone)
  • Hoisting and stringing equipment
  • Replacing an FRP tool or hot stick for pulling applications

Yes, we have conducted several lab and field tests with linemen using the Barry D.E.W line dielectric work ropes on sheaves, pulleys, capstans, descent devices and rope grabs. Under normal use, these mechanical tools did not affect the insulative performance of the lines tested.

Please contact us if you have any questions about a specific application or compatibility question for these products.

Our tag lines are offered in standard lengths of:

  • 15 m (50')
  • 30 m (100')
  • 45 m (150')

Other lengths are available upon request, please contact us for more information.

No, this product is sold as a finished rope, with sealed terminations at each end.

This is done in-house at Barry’s facility to ensure the integrity and insulating properties of the overall system. They are iindividually labeled with date and serial #.

No, this product is sold as a finished rope, with sealed terminations at each end.

This is done in-house at Barry’s facility to ensure the integrity and insulating properties of the overall system. They are individually labeled with date and serial #.

These can sometimes be repaired on a case-by-case basis.

Please contact us with more information to evaluate the options.


Patent
Barry D.E.W. Line® Products are Patent Pending.
