System Includes
- Synthetic rope longline (Dyneema® fiber)
- Master link at top end

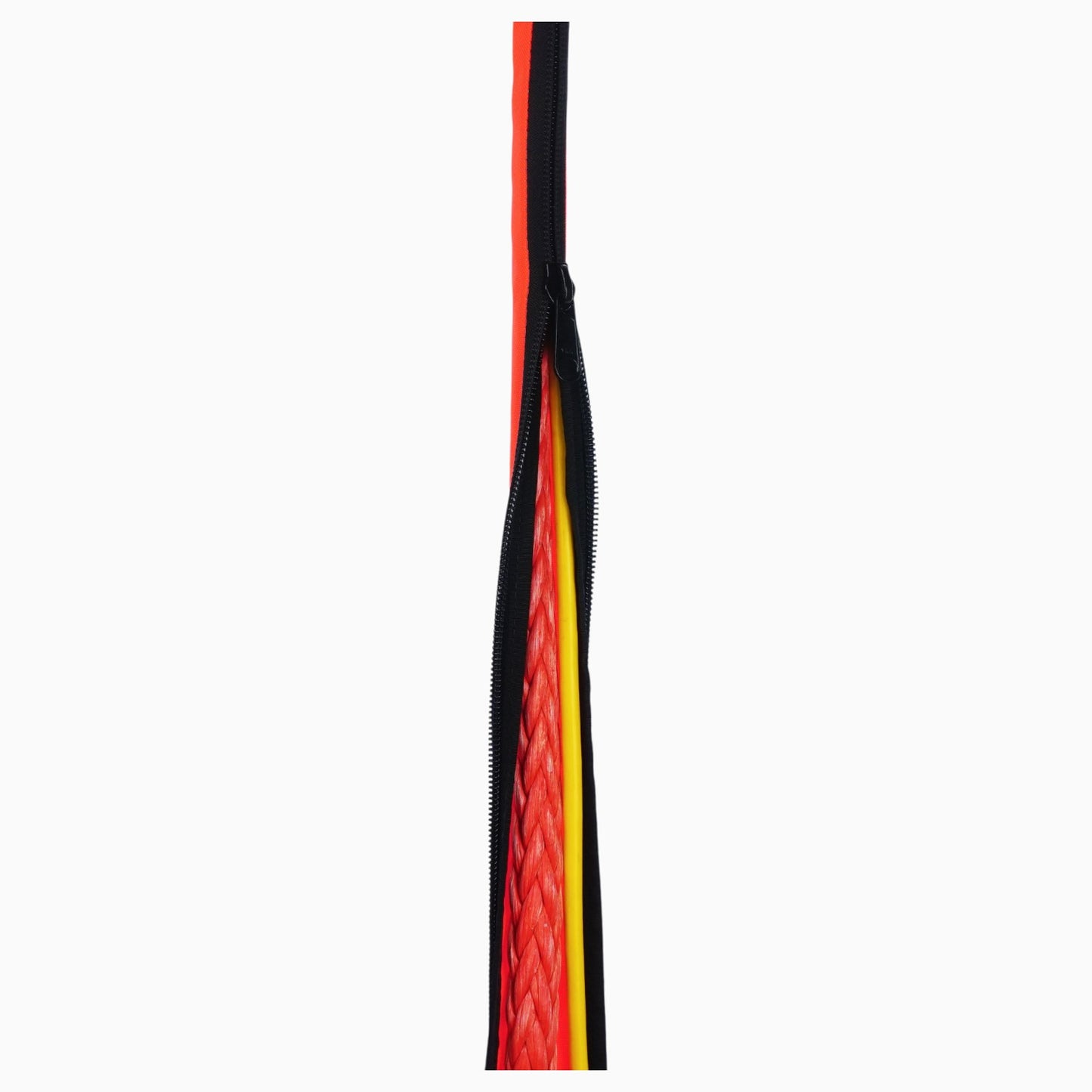

- Protective zipper jacket for easy inspection of longline & wire
- Electrical cable with connectors*
- Permanent ID tag
- Certificate of compliance (COC)
- EC Declaration of conformity
- User instructions manual
- Transport/storage bag
Optional / Accessories
- Weighted bottom end-cover for increased load-stability and velocity without load
- Protective double zipper jacket
- Non-swivel self-locking hook at bottom
- Electric swivel & remote hook
Technical
- 10-year service and shelf life
- Proof-loaded to 1.5 x WLL
- Supported by Airworthiness Analysis to:
- FAA CFR Title 14, Parts 27 & 29
- EASA CS-27.865 & CS-29.865
- EC Machinery Directive 2006/42/EC
- NATO STANAG 2286
- NATO STANAG 3542
Standard lengths: 25’, 50’, 75’, 100’, 125’, 150’ and 200’
(Other lengths available upon request)
| Product Code | Diameter | Working Load Limit | Weight (for 100’ w/ LLJZ) |
|---|---|---|---|
| DLL-3000 | 7/16” (11 mm) | 3,000 lb (1,361 kg) | 25 lb (11.3 kg) |
| DLL-4500 | 1/2” (13 mm) | 4,500 lb (2,041 kg) | 26 lb (11.8 kg) |
| DLL-6400 | 5/8” (16 mm) | 6,400 lb (2,903 kg) | 30 lb (13.6 kg) |
| DLL-8300 | 3/4” (19 mm) | 8,300 lb (3,764 kg) | 34 lb (15.4 kg) |
Service and Shelf Life
| Max. shelf life | Max. service life | Max. combined life (shelf + service) |
|---|---|---|
| 10 years | 10 years | 10 years |
| Important: Parts are considered on-condition throughout their shelf and service life and must pass inspections and maintenance recommendations as per the manufacturer’s user instructions manual. | ||
* Standard electrical cable: 3C/14 SJTW/SJOOW 300V (Other gages, conductors and multiple wire configurations available upon request)
* Male/Female connectors supplied, to be installed by end-user
Dyneema® is a trademark of DSM. Use of this trademark is prohibited unless strictly authorized.
