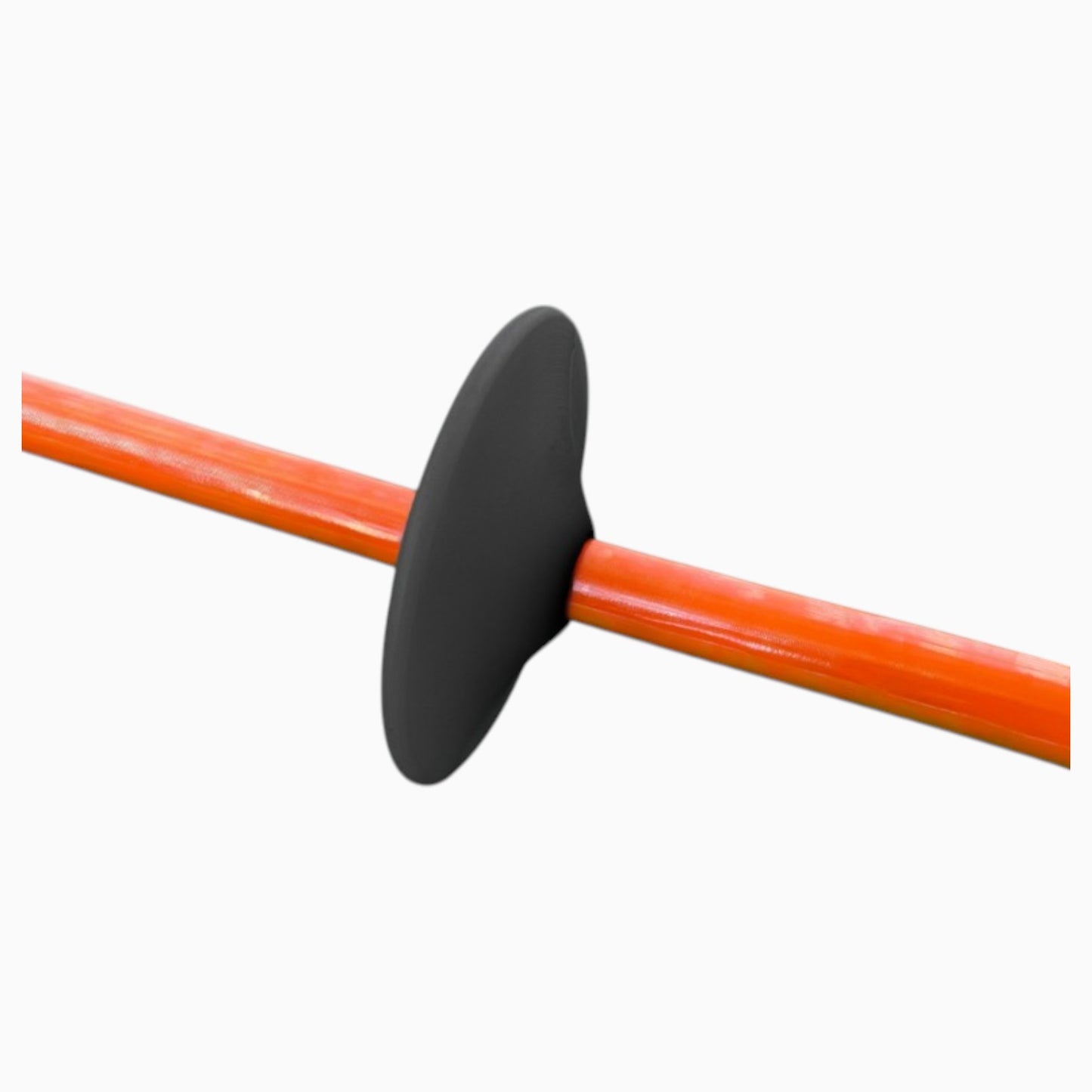

Barry D.E.W. Line® Creepage Extender Sheds

Barry D.E.W. Line® Creepage Extender Sheds


Product Code: SHDS1

Barry D.E.W. Line® Creepage Extender Sheds are a patent-pending, innovative solution designed to enhance the safety of live-line workers. They can be easily installed or removed from insulating tools without adhesives. Their use may disrupt the streamer propagation path and velocity by increasing the creepage distance.

Made from reliable dielectric materials, these sheds are highly resistant. Their position and quantity can be adapted based on voltage levels, the type and length of the insulating tool, and climatic conditions.

Technical:

  • 2-part system for ease of installation / removal, inspection, cleaning, transport or storage
  • Non-metallic bolted assembly (requires no heat, glue or adhesives)
  • Robust and durable for repeated use
  • Reusable
  • Protects insulating tools when laid flat or stored

Applications:

  • Hot sticks, strain poles, link sticks, and other insulating tools

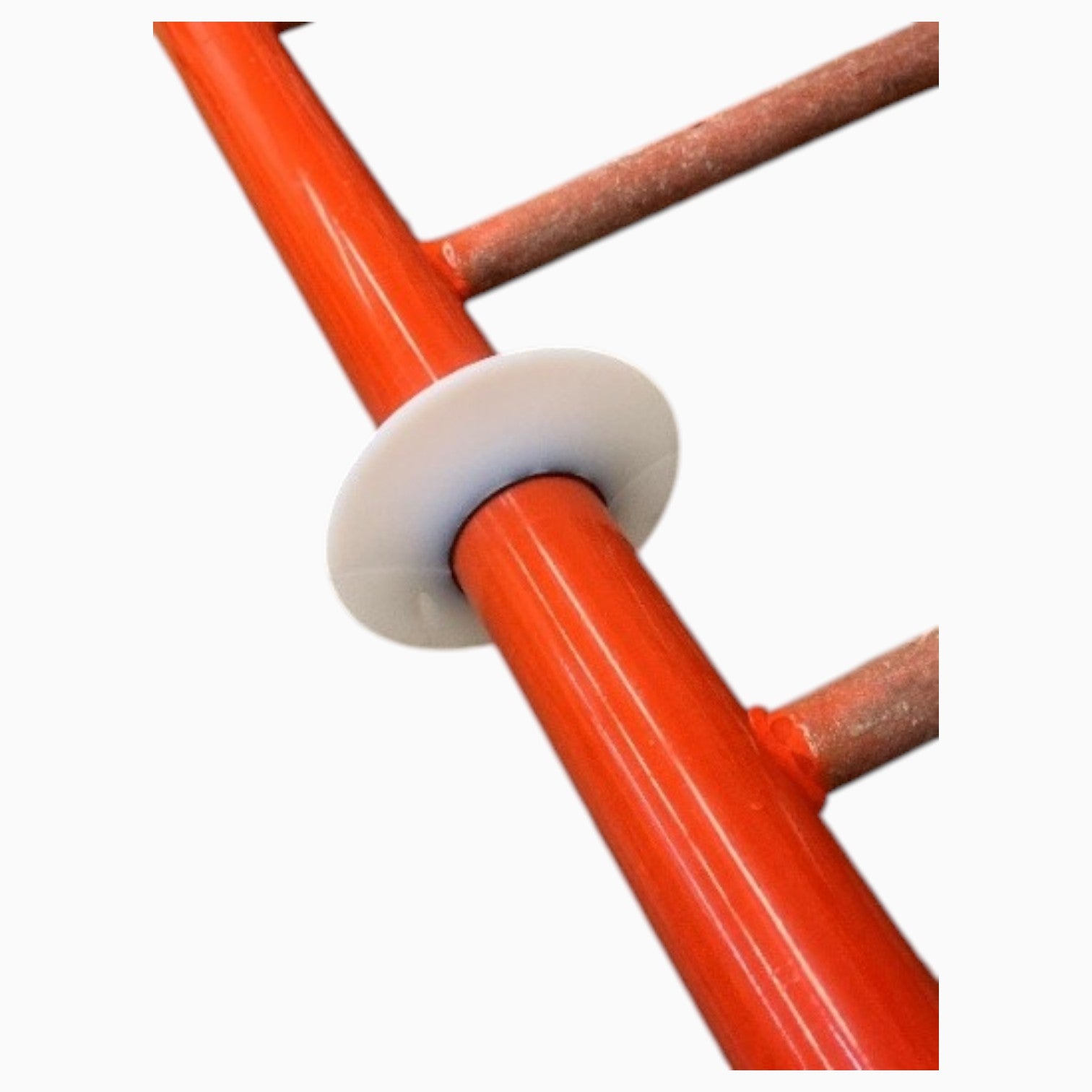

  • Insulating ladders

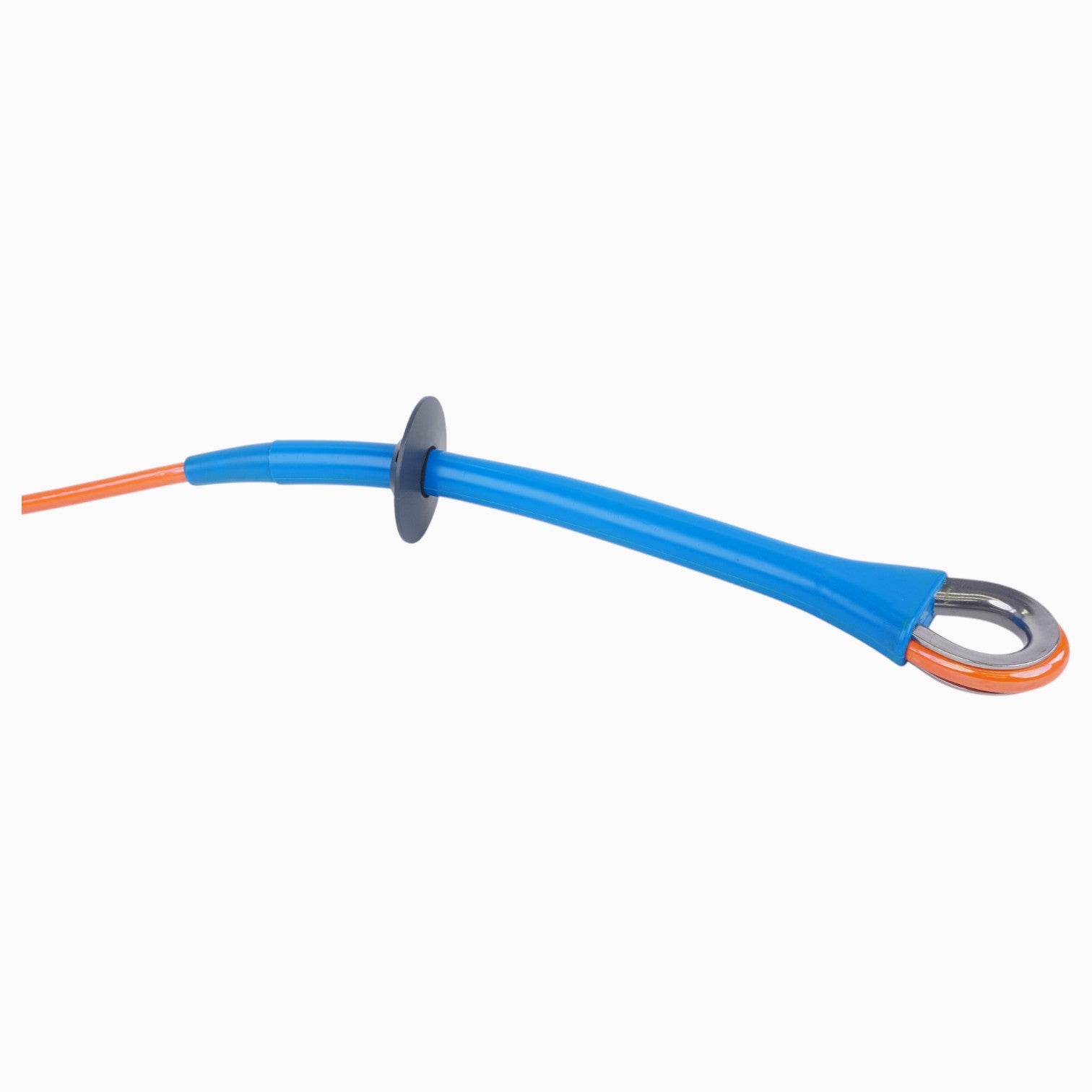

  • Barry D.E.W. Line® rope tools

Advantages:

  • Disrupts streamer propagation and velocity
  • Increases creepage distance
  • Can be used as a marker for Minimum Approach Distance (MAD)
  • Easy to maintain and clean
  • No predetermined shelf or service life limit

Available Models:

Part # Tool Diameter
SHDS1-1.25 1.25"
SHDS1-1.5 1.5"
SHDS1-2 2"
SHDS1-2.5 2.5"
SHDS1-3 3"
