Dielectric Insulating Rope & Nets


Dielectric Insulating Rope & Nets

Barry D.E.W. Line® (Dielectric Even Wet) products are Patent Pending and are the result of over two decades of R&D and continuous product improvement. Our highly specialized and proprietary products offer unique insulating properties not found in any other rope products.

  • Throw line and Tag Line
  • Work Rope and Rope Link
  • Rescue Rope and rescue Kit
  • Dielectric Safety Net
  • Dielectric Helicopter Longline
  • Lifting Beam for Utility Distribution

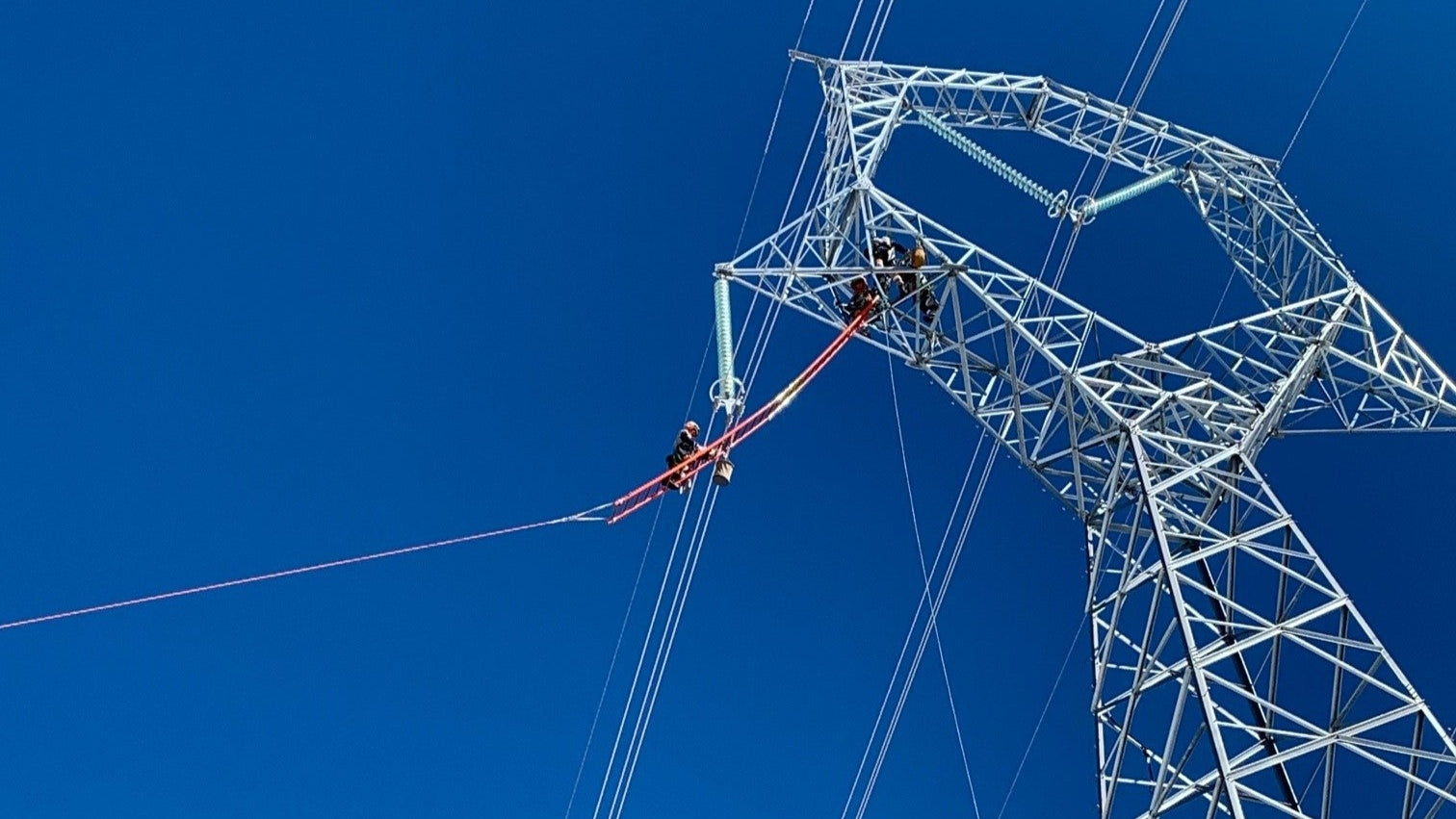

These products are trusted and used worldwide for performing high voltage tasks (AC or DC) such as live-line maintenance, pulling and stringing, bare-hand work, personnel evacuation & rescue, helicopter lift, transport & HEC, and for other critical applications.

dielectric-rope-and-net

Dielectric Insulating Rope & Nets

Barry D.E.W. Line® Dielectric Throw Line
Barry D.E.W. Line® Dielectric Throw Line
Product Code: HL-NA50

Working Load Limit: 30 lb
Diameter: 1/8”
Standard Lengths: 300’ and 500’

Barry D.E.W. Line® Dielectric Tag Line
Barry D.E.W. Line® Dielectric Tag Line
Product Code: HL-NK1000

Working Load Limit: 200 lb
Diameter: 1/4”
Standard Lengths: 20’, 30’, 40’

Barry D.E.W. Line® Dielectric Rescue Rope
Barry D.E.W. Line® Dielectric Rescue Rope
Product Code: HL-NF3400

Working Load Limit: 500 lb
Diameter: 15/32”
Standard Lengths: Upon request

Barry D.E.W. Line® Dielectric Work Rope
Barry D.E.W. Line® Dielectric Work Rope
Product Code: HL-NP2800

Working Load Limit: 1 260 lb
Diameter: 1/2”
Standard Lengths: 50’, 100’, 150’

Barry D.E.W. Line® Dielectric HD Work Rope
Barry D.E.W. Line® Dielectric HD Work Rope
Product Code: HL-NP4500

Working Load Limit: 2 000 lb
Diameter: 9/16”
Standard Lengths: 50’, 100’, 150’

Barry D.E.W. Line® Dielectric X-Heavy Work Rope
Barry D.E.W. Line® Dielectric X-Heavy Work Rope
Product Code: HL-ND16K

Working Load Limit: 5 000 lb
Diameter: 5/8”
Standard Lengths: 15’, 20’, 25'

Barry D.E.W. Line® Dielectric Rope Link
Barry D.E.W. Line® Dielectric Rope Link
Product Code: HL-NK19000

Working Load Limit: 7 000 lb
Diameter: 7/8”
Standard Lengths: 5’, 10’, 15’

Barry D.E.W. Line® Dielectric HD Rope Link
Barry D.E.W. Line® Dielectric HD Rope Link
Product Code: HL-NK38000

Working Load Limit: 15 000 lb
Diameter: 1-1/4”
Standard Lengths: 10’, 15’, 20'


Dielectric Safety Net

Barry Vertical Safety Nets
Barry Vertical Safety Nets
Product Code: NP-BBHO

Barry D.E.W. Line® Dielectric Tag Line
Barry D.E.W. Line® Dielectric Tag Line
Product Code: HL-NK1000


Dielectric Insulating Rescue Kit

Barry D.E.W. Line® R2 Rescue Kit
Barry D.E.W. Line® R2 Rescue Kit
Product Code: ENS-R2-HLNF

Barry D.E.W. Line® Rescue Hoist Kit
Barry D.E.W. Line® Rescue Hoist Kit
Product Code: ENS-RH-HLNF

Barry D.E.W. Line® Compact Rescue Hoist Kit
Barry D.E.W. Line® Compact Rescue Hoist Kit
Product Code: ENS-RH-HLNF-06C


Dielectric Helicopter Longline and Lifting Beam


Barry D.E.W. Line® Accessories

BIG SHOT® Deluxe Kit
BIG SHOT® Deluxe Kit
Product Code: LT41010

Extruded thermoplastic jacketed rope made by Barry are dielectric ropes categorized as Category 1 Insulating Ropes. All Barry D.E.W. Lines are designed to perform in energized environments, where there is a risk that they come into contact with energized conductors (phase-to-ground or phase-to-phase).

Category 1 Insulating Rope: Synthetic rope designed, manufactured, tested and maintained to provide primary insulation and to ensure appropriate insulating qualities and is intended to come in contact with energized conductors phase to ground or phase to phase.

Visit our blog to learn more about how Barry Cordage has pioneered dielectric insulating rope tools for various applications in the utility industry.

https://www.barry.ca/blog/developing-the-best-dielectric-rope

Rope Systems and Utilities Rigging Equipment Technical Publications

Patent
Barry D.E.W. Line® Products are Patent Pending.
